Nokia 5G16-A
High Gain 5G Receiver
2022
Status: Produced
Role: Industrial Design Lead
Design Direction: Anton Fahlgren, Axel Meyer

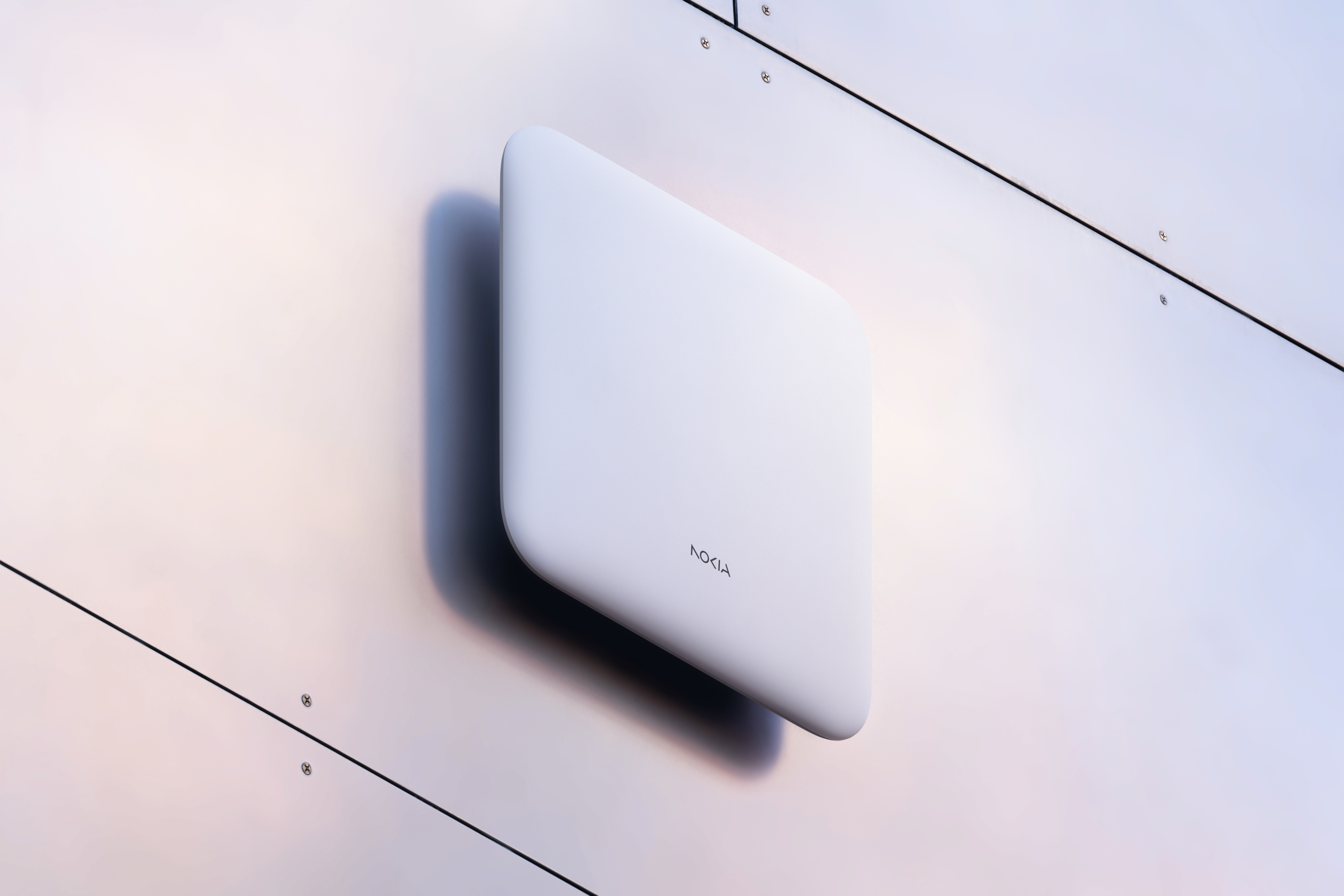

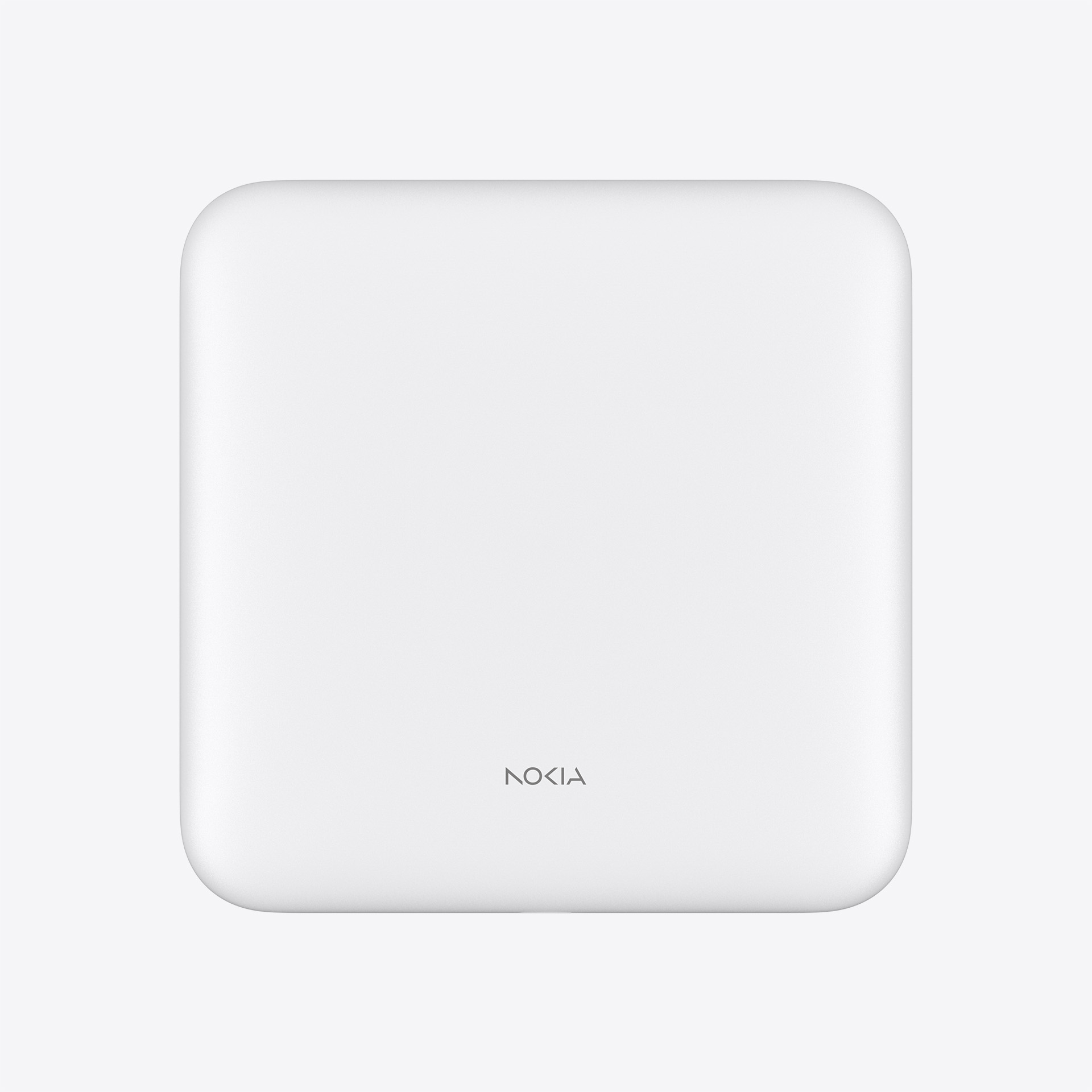

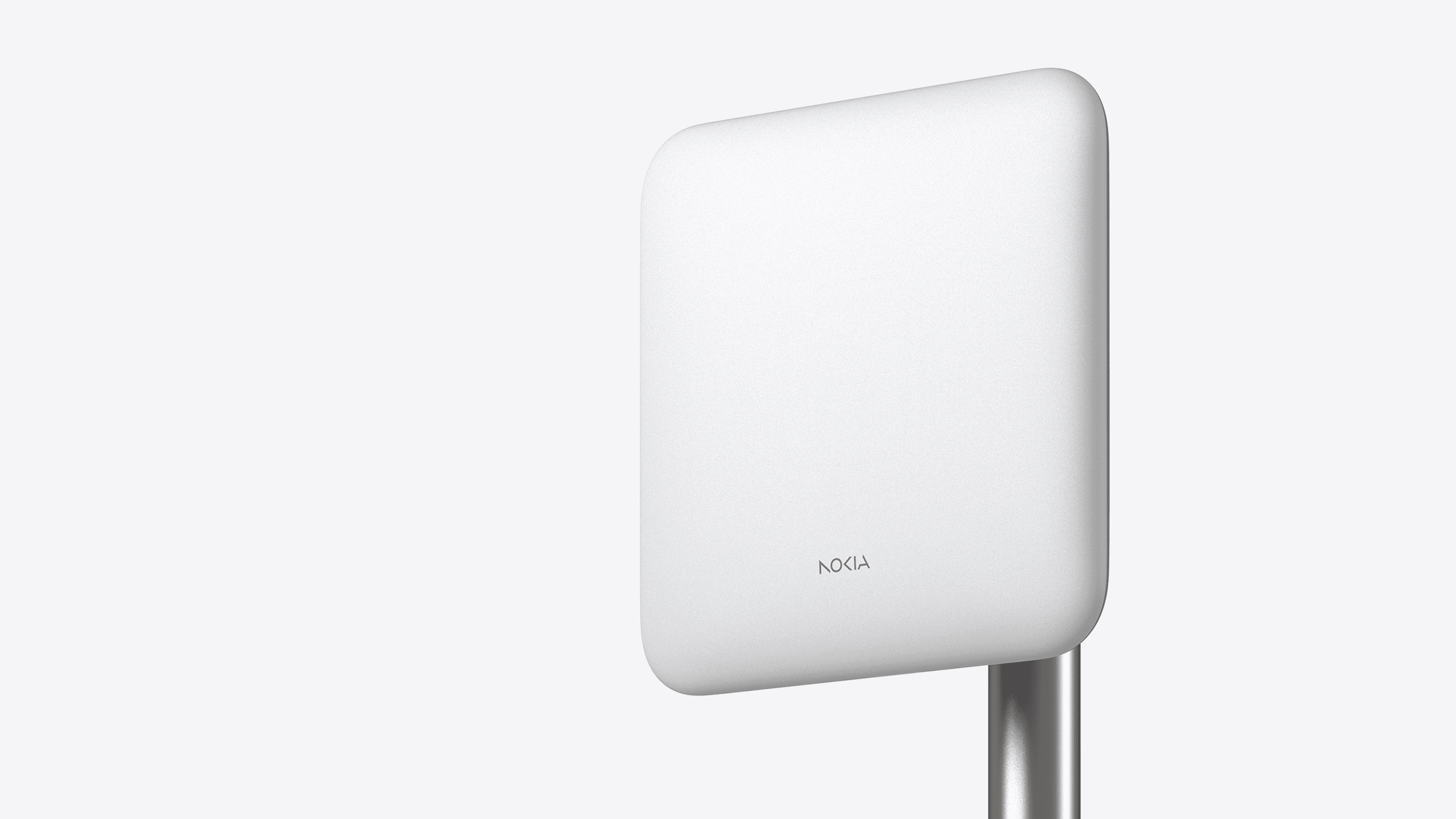

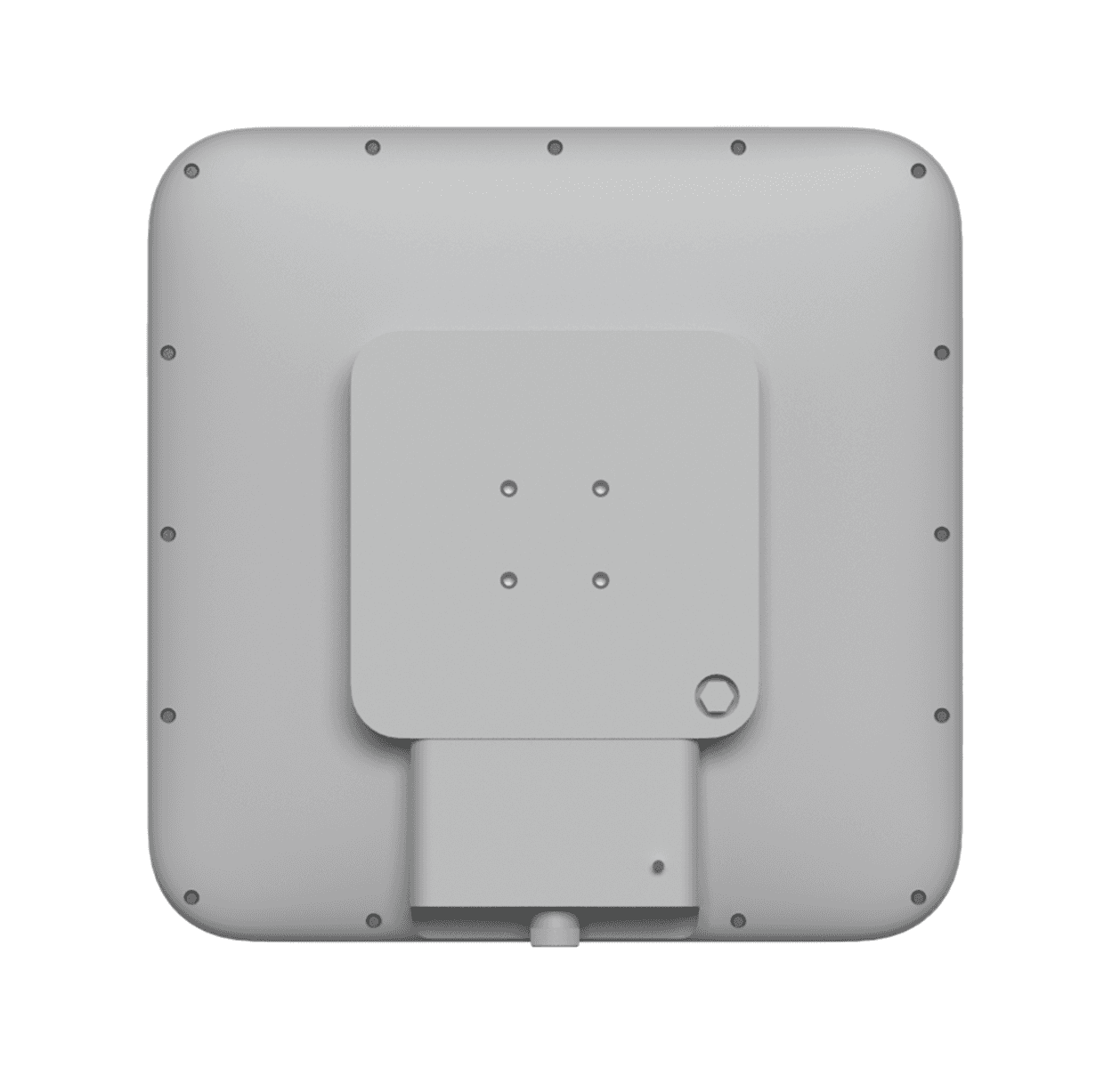

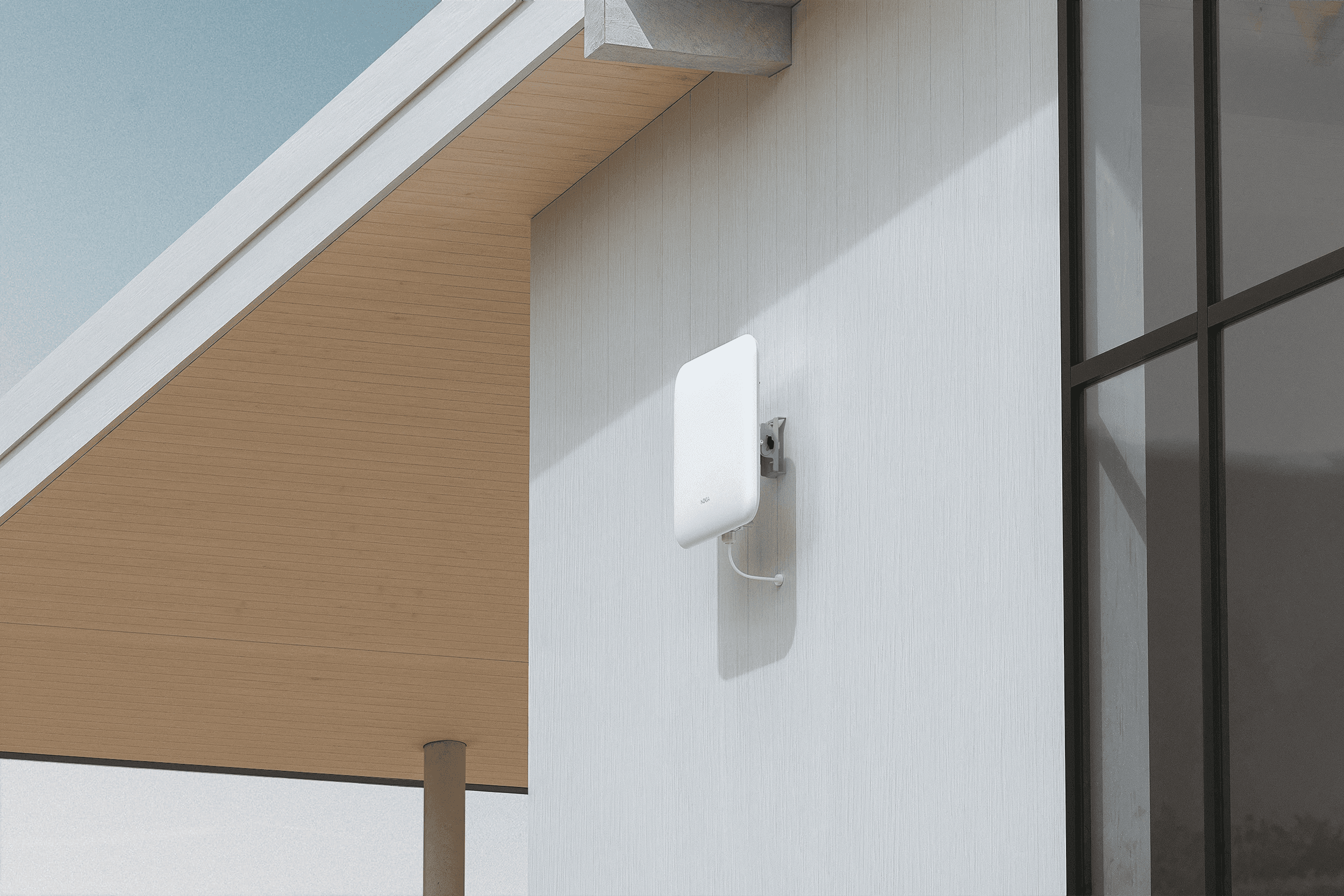

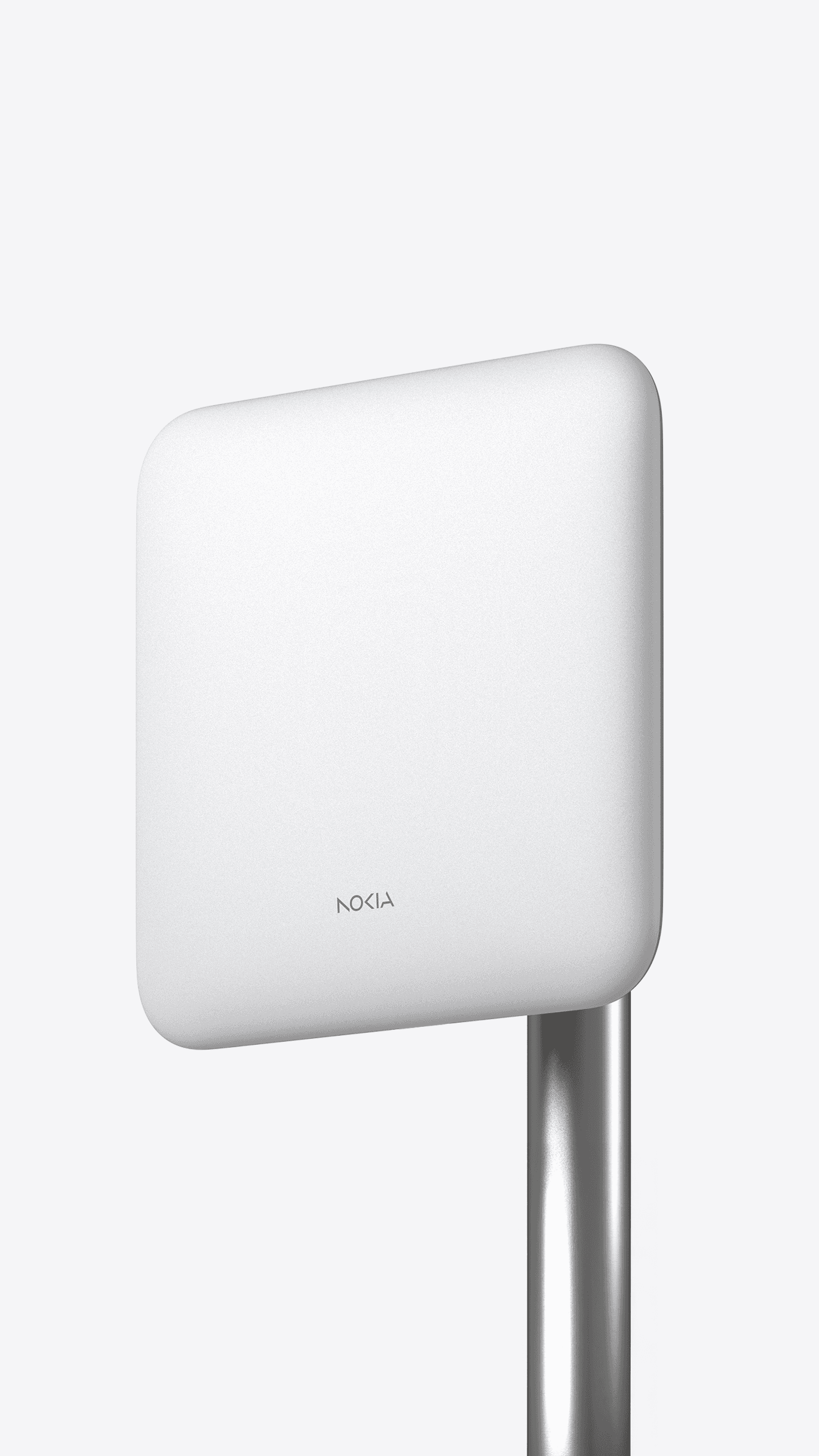

Quiet Infrastructure
As an object intended for exterior
installation, the goal was to avoid
the typical technical appearance
of telecom equipment. Rather than
expressing the complexity within,

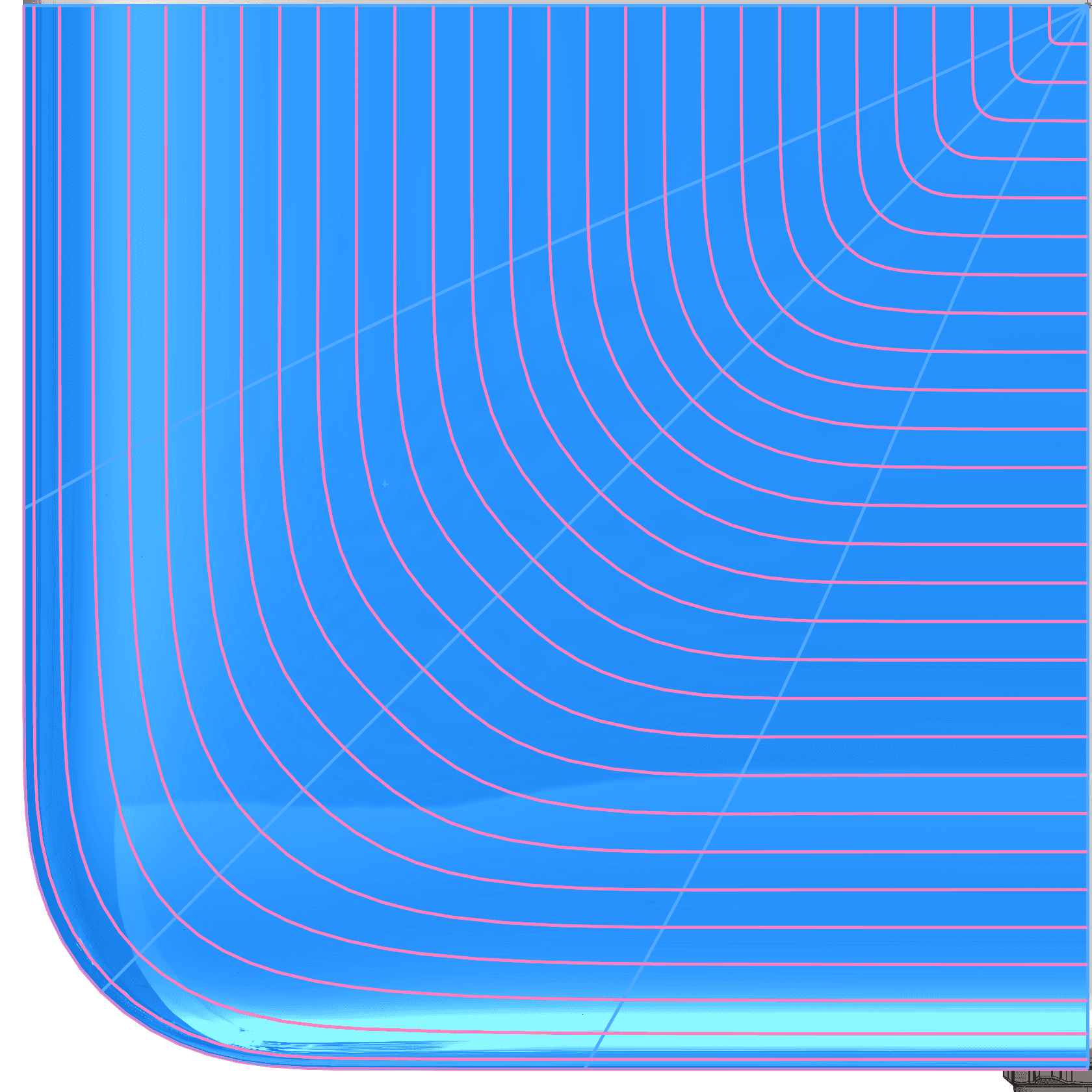

the form focuses on softness and
reduction. The simplified geometry
allows the device to recede into
architectural surroundings while
maintaining the robustness required
for outdoor use.

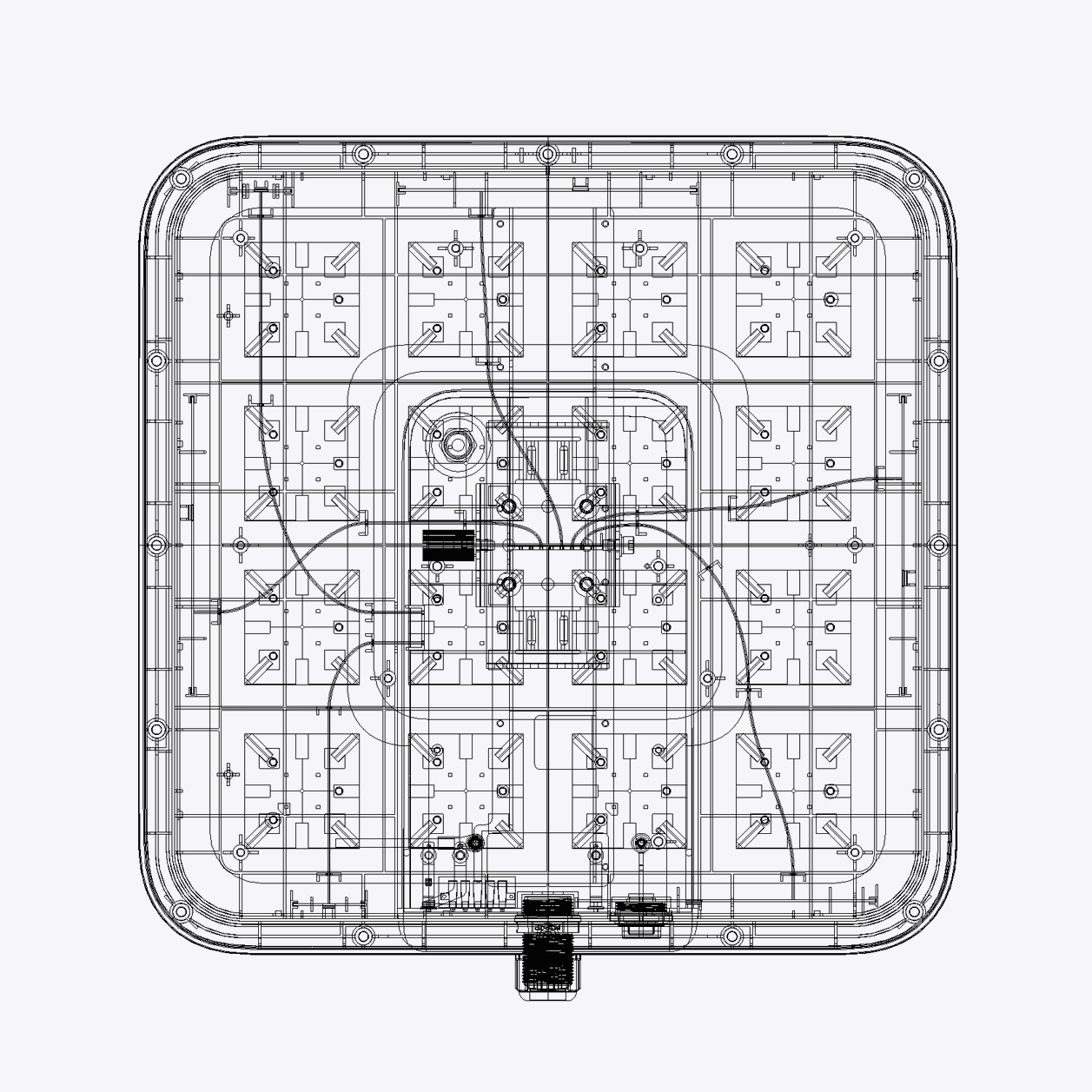

IP66 Architecture
Beyond the goal of minimizing the
device’s footprint and visual presence,
the IP66 requirement strongly influenced

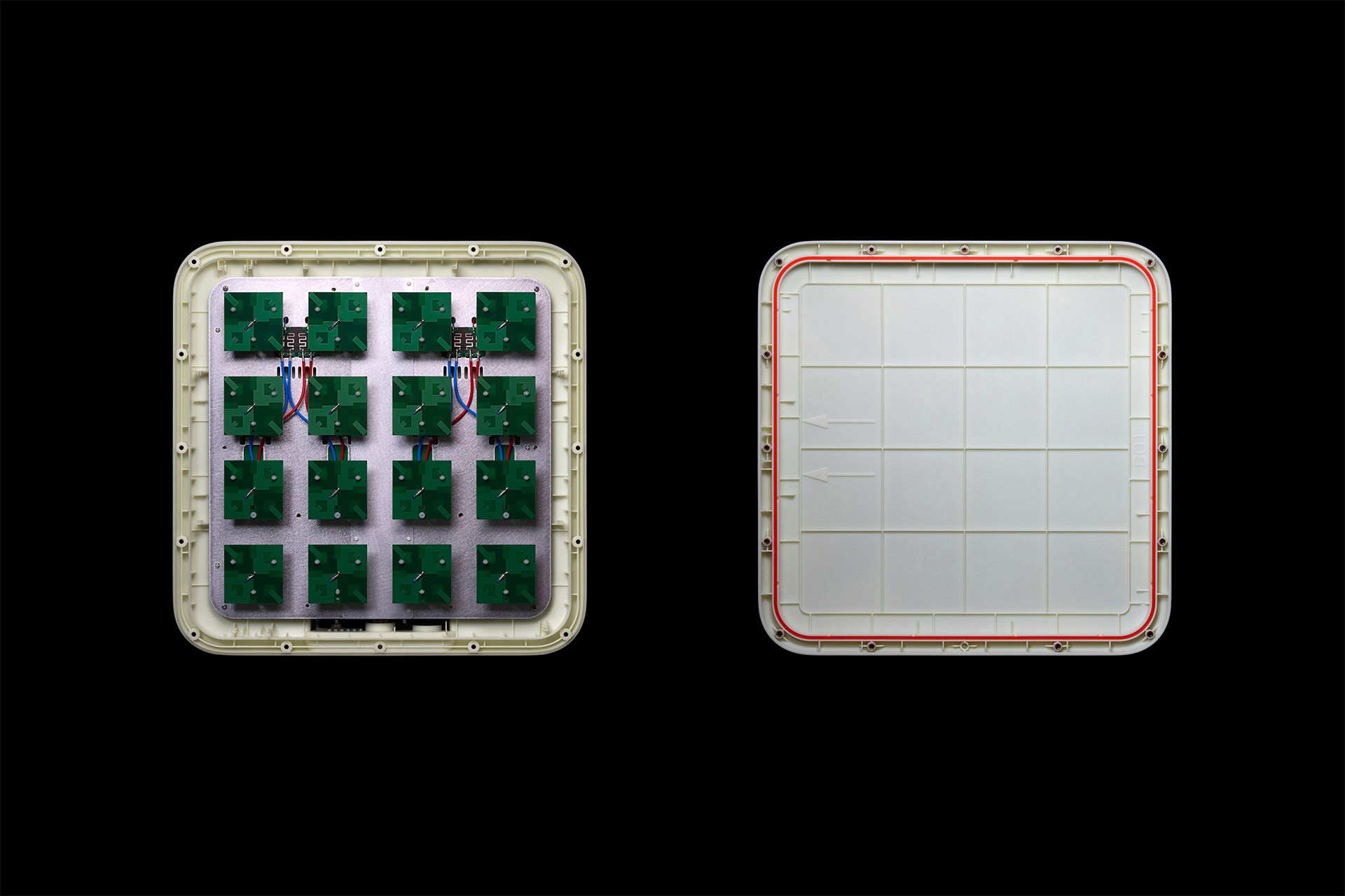

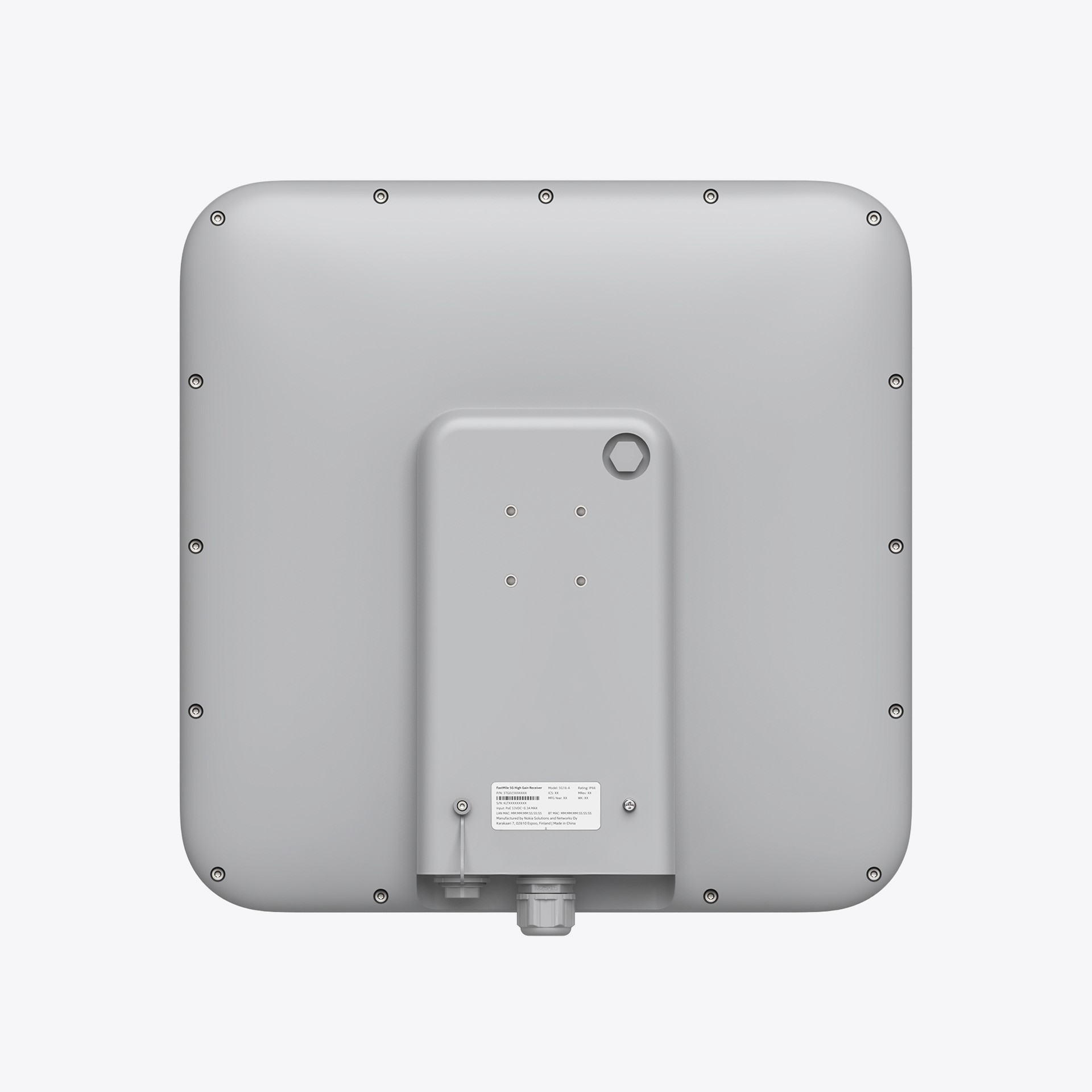

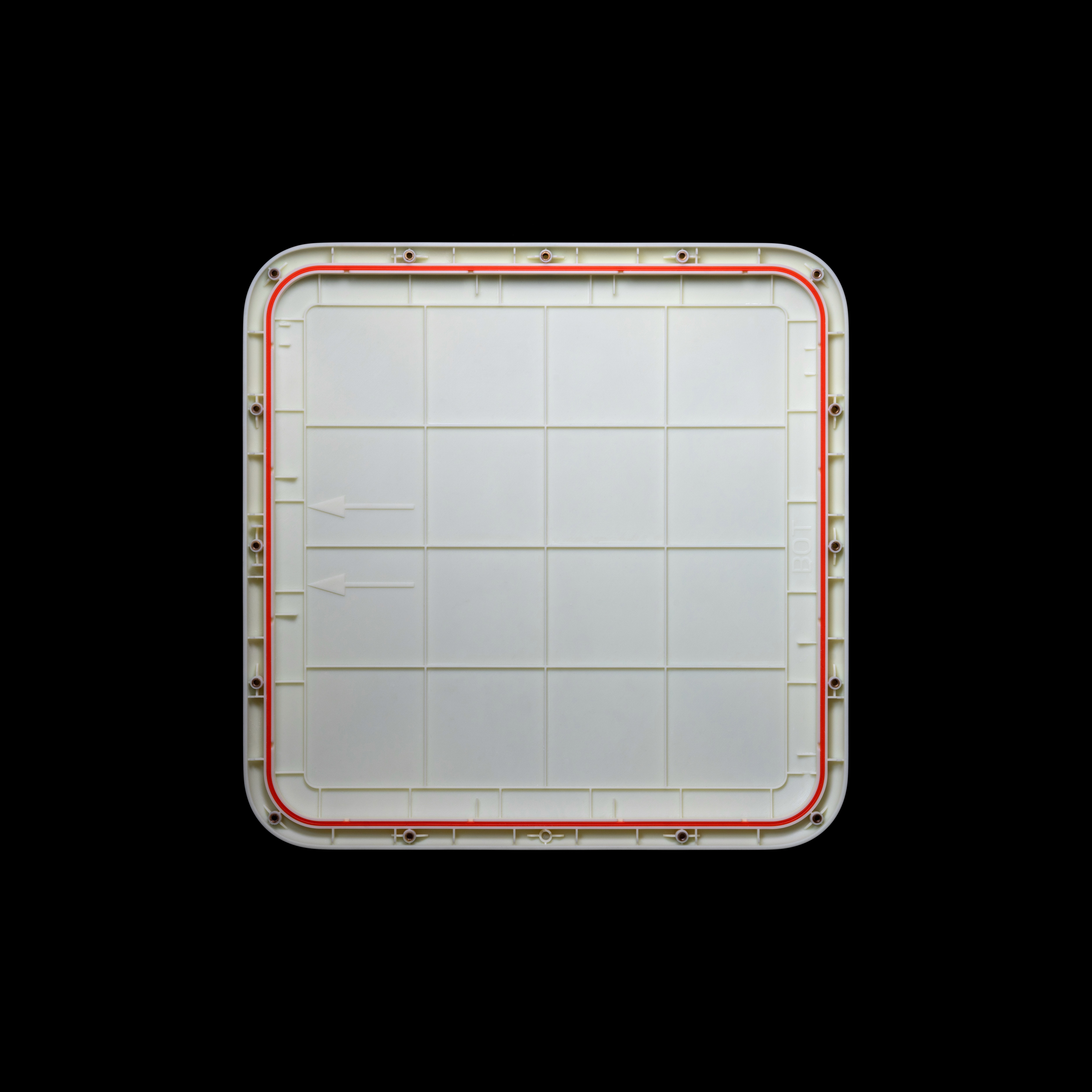

the enclosure architecture. A perimeter
gasket, evenly compressed by an array
of screws, creates a reliable watertight
seal between the enclosure shells.

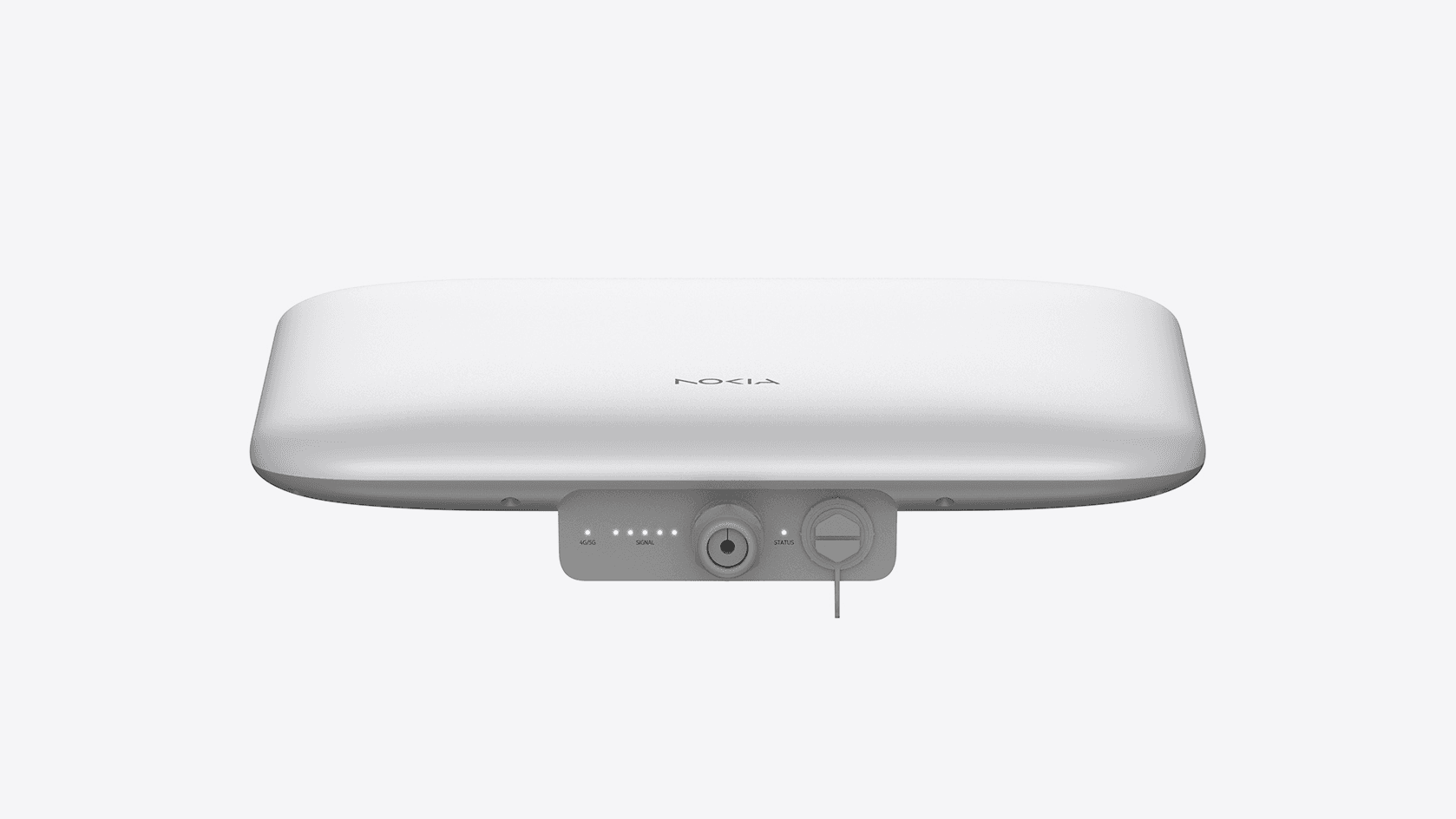

Both the cable entry and SIM door are
protected by custom-designed gland
structures.

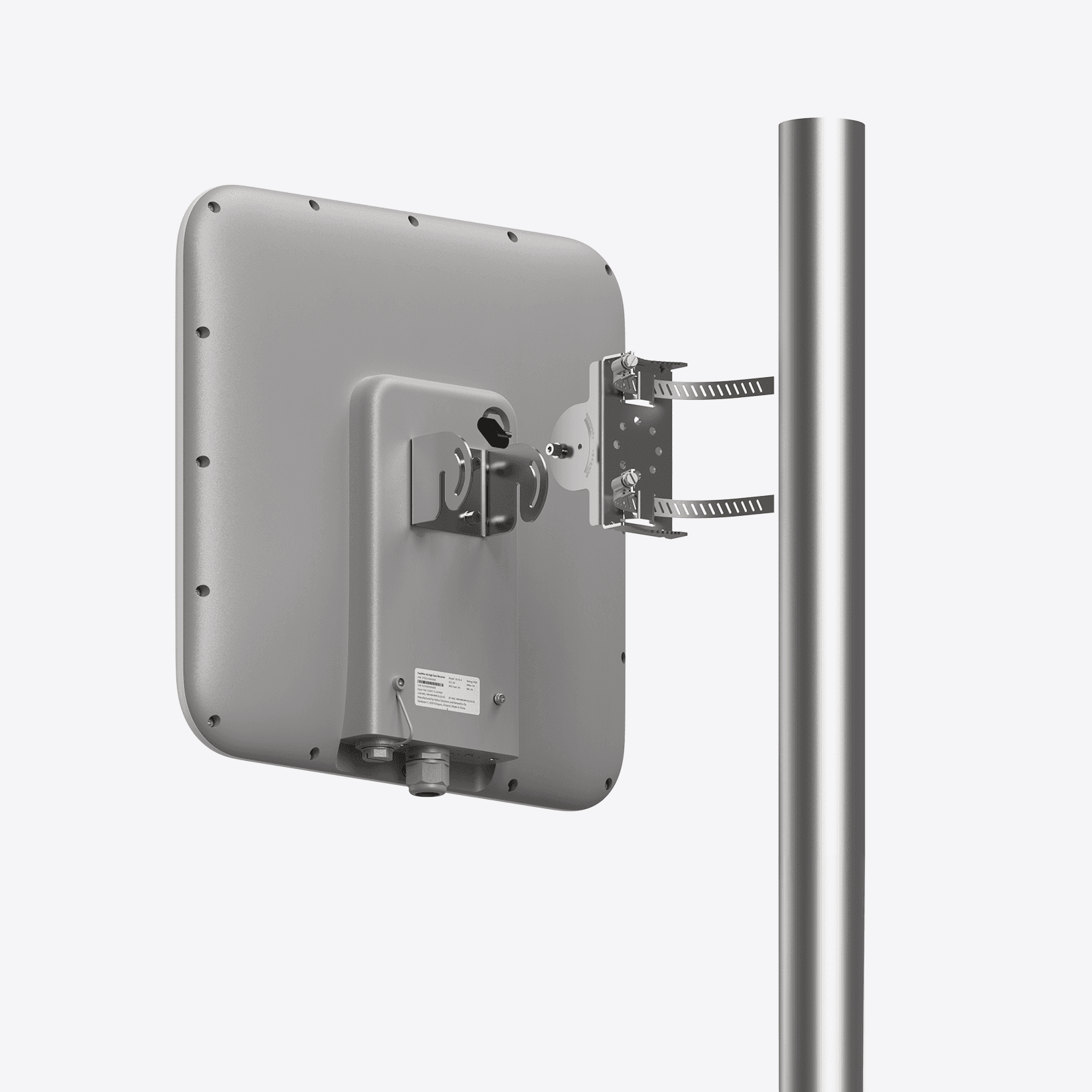

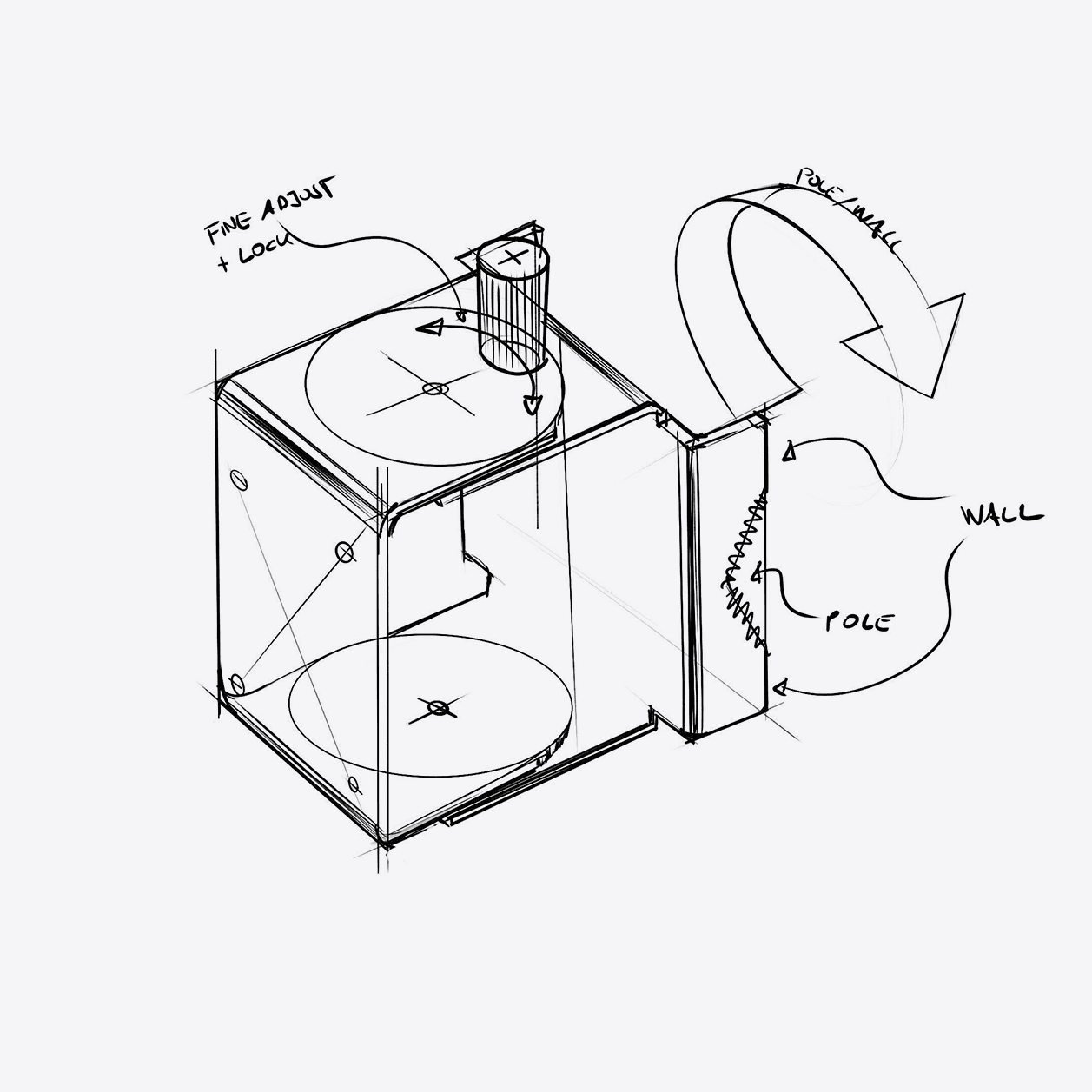

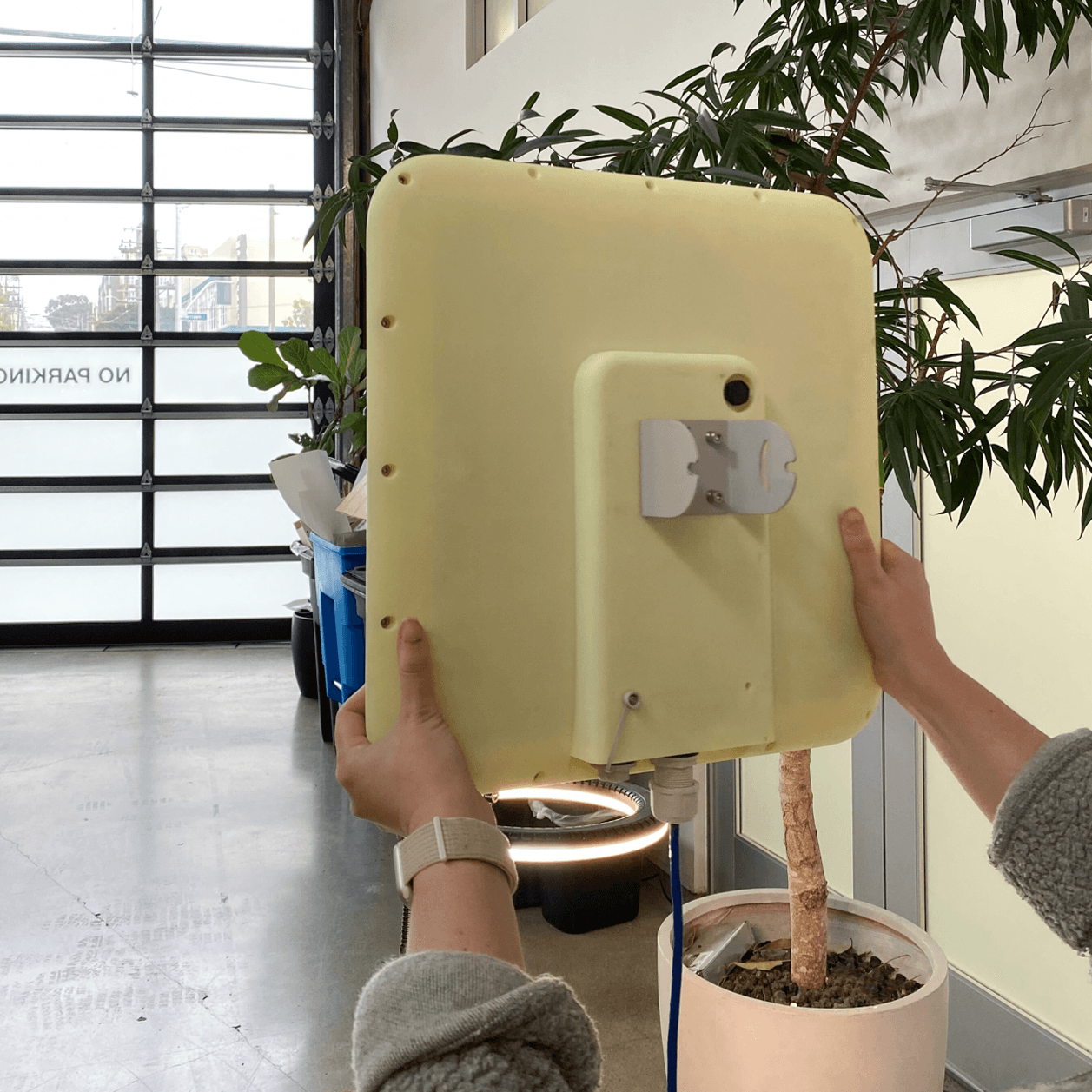

Installation System
Designed for both professional and
self-install scenarios, the installation

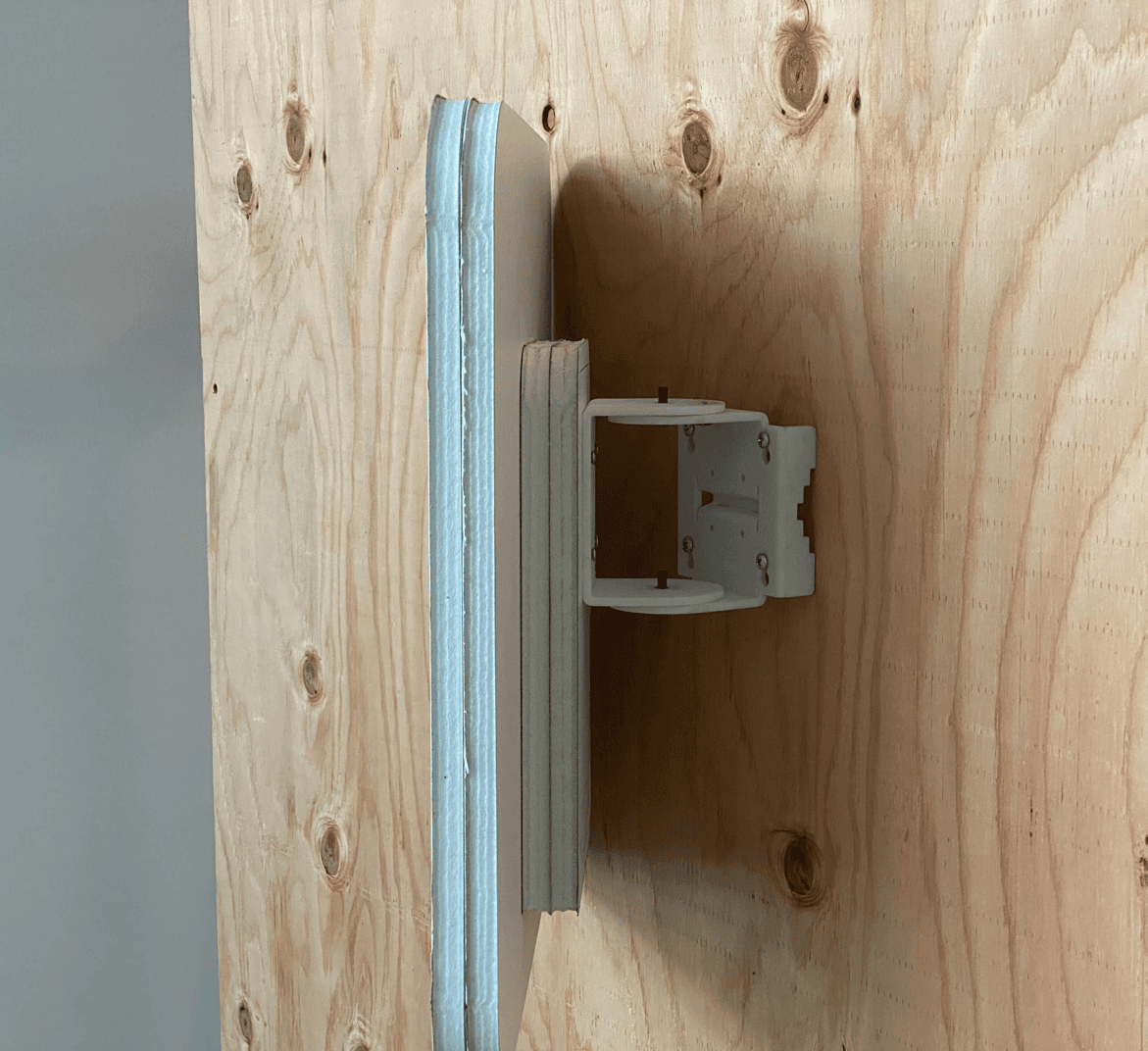

flow was carefully prototyped and

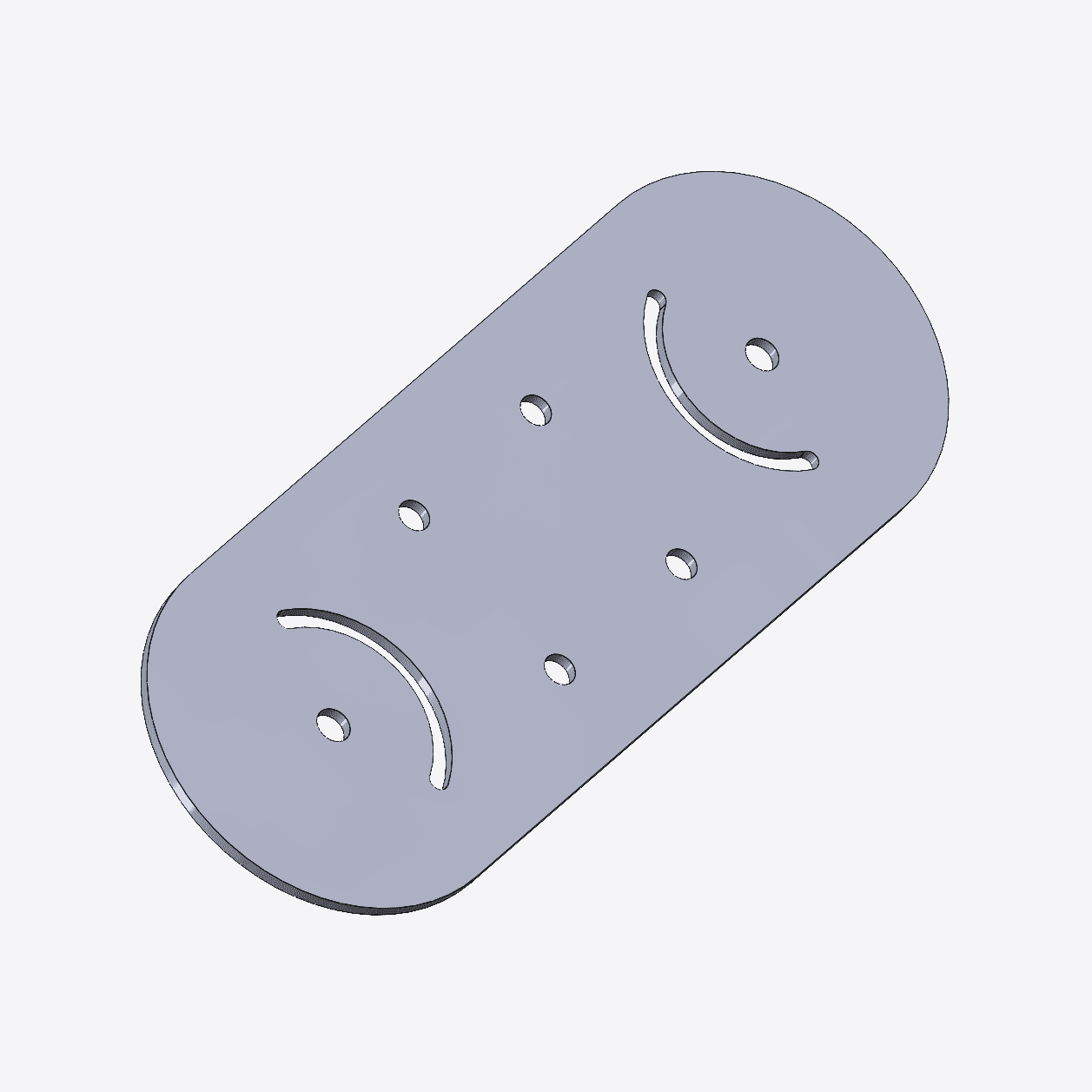

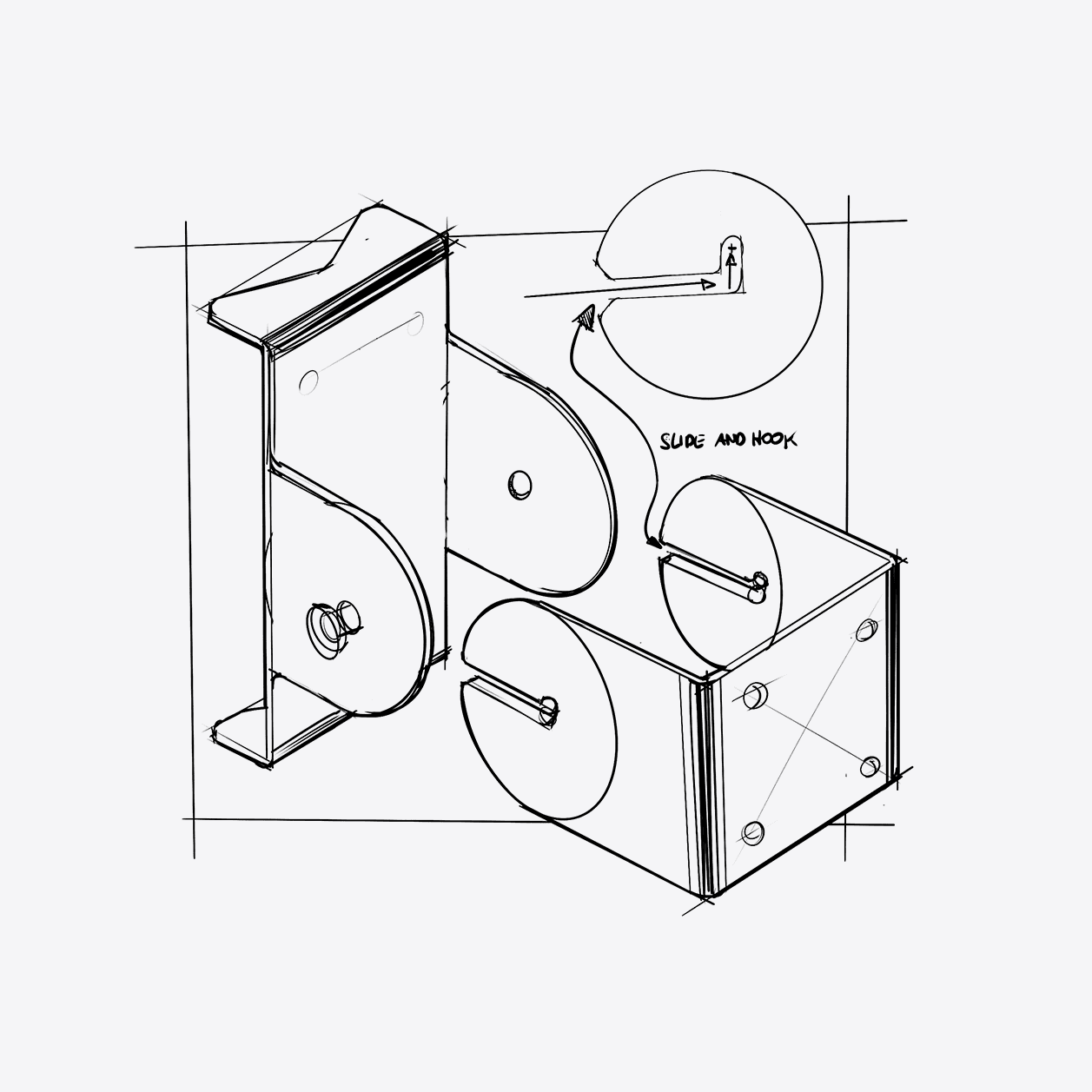

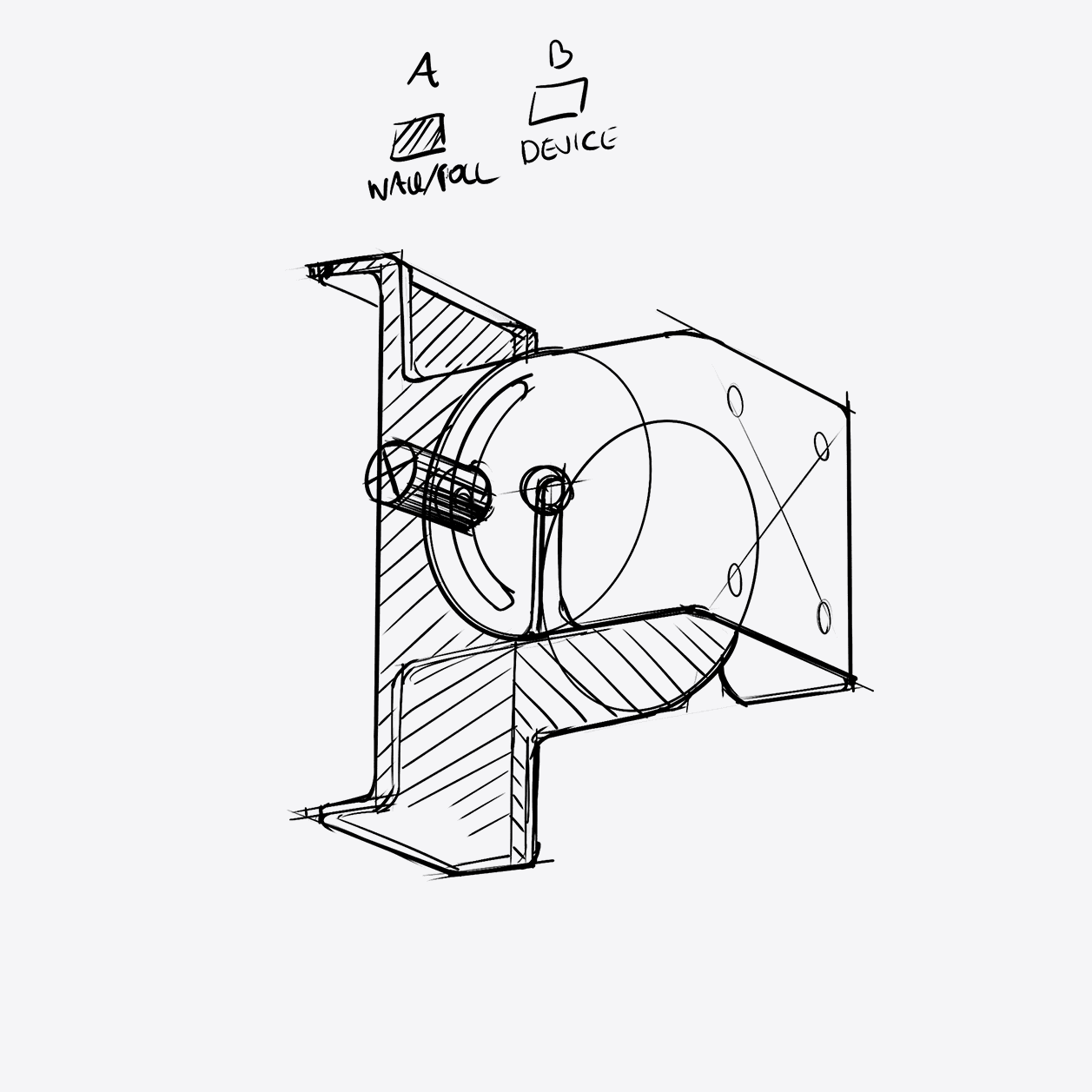

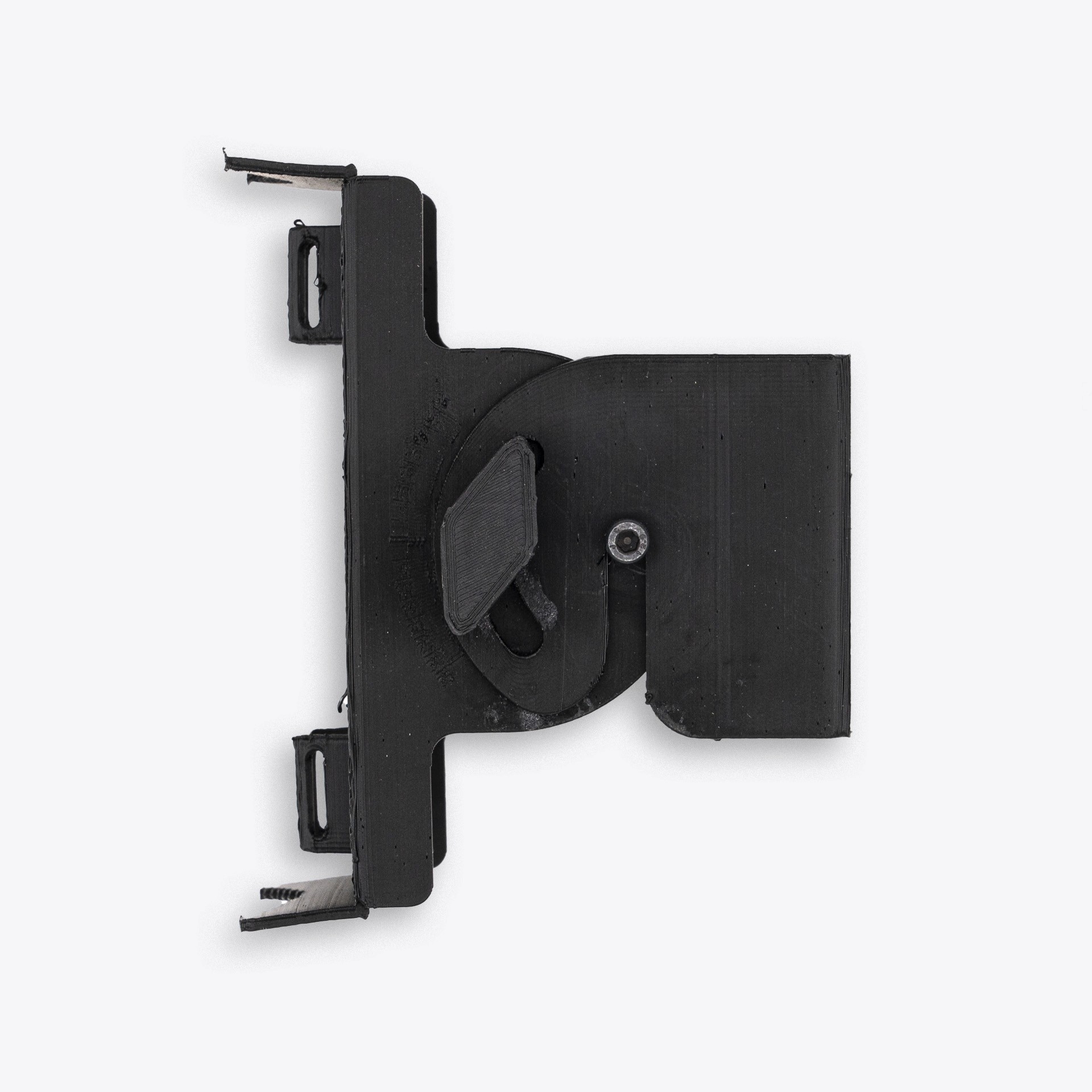

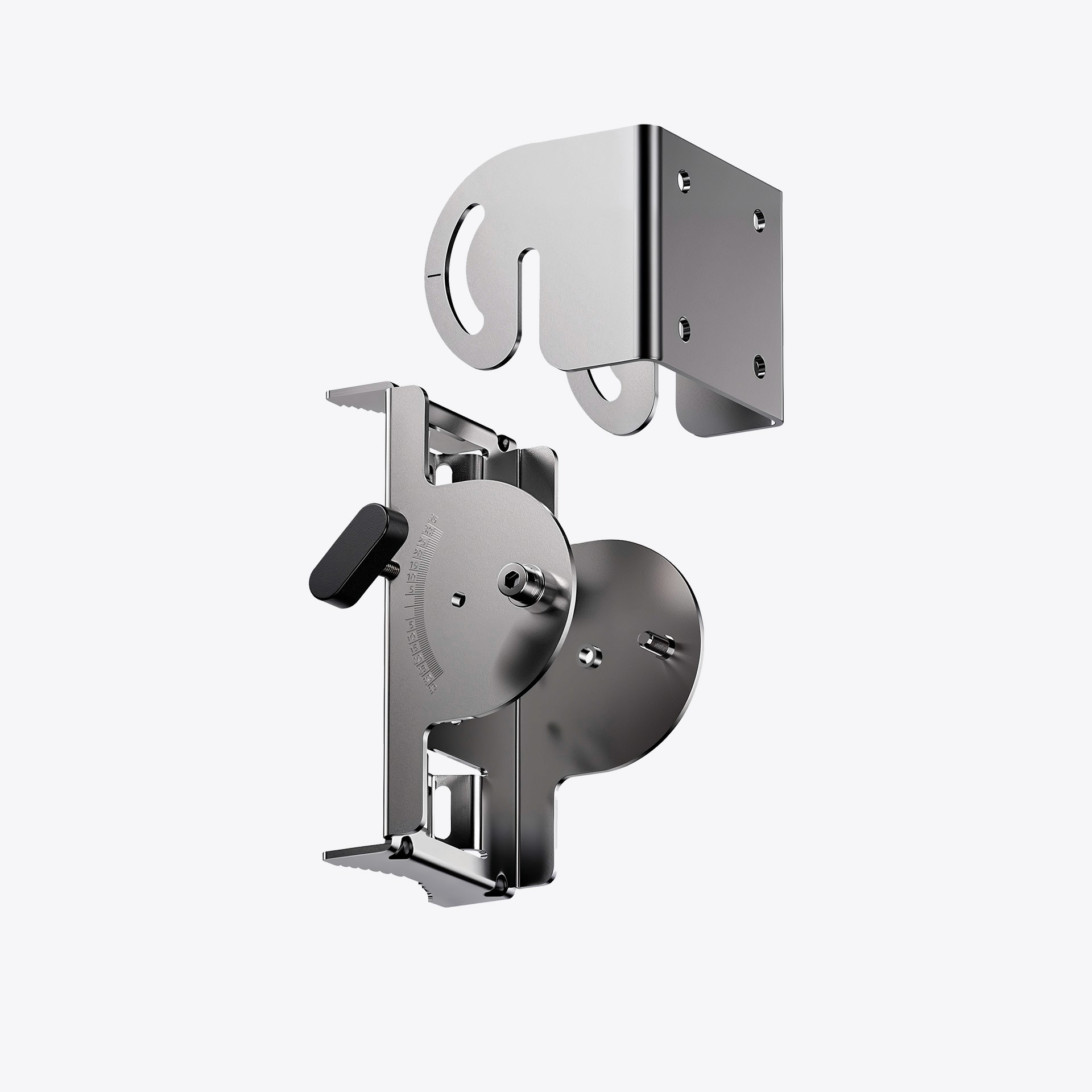

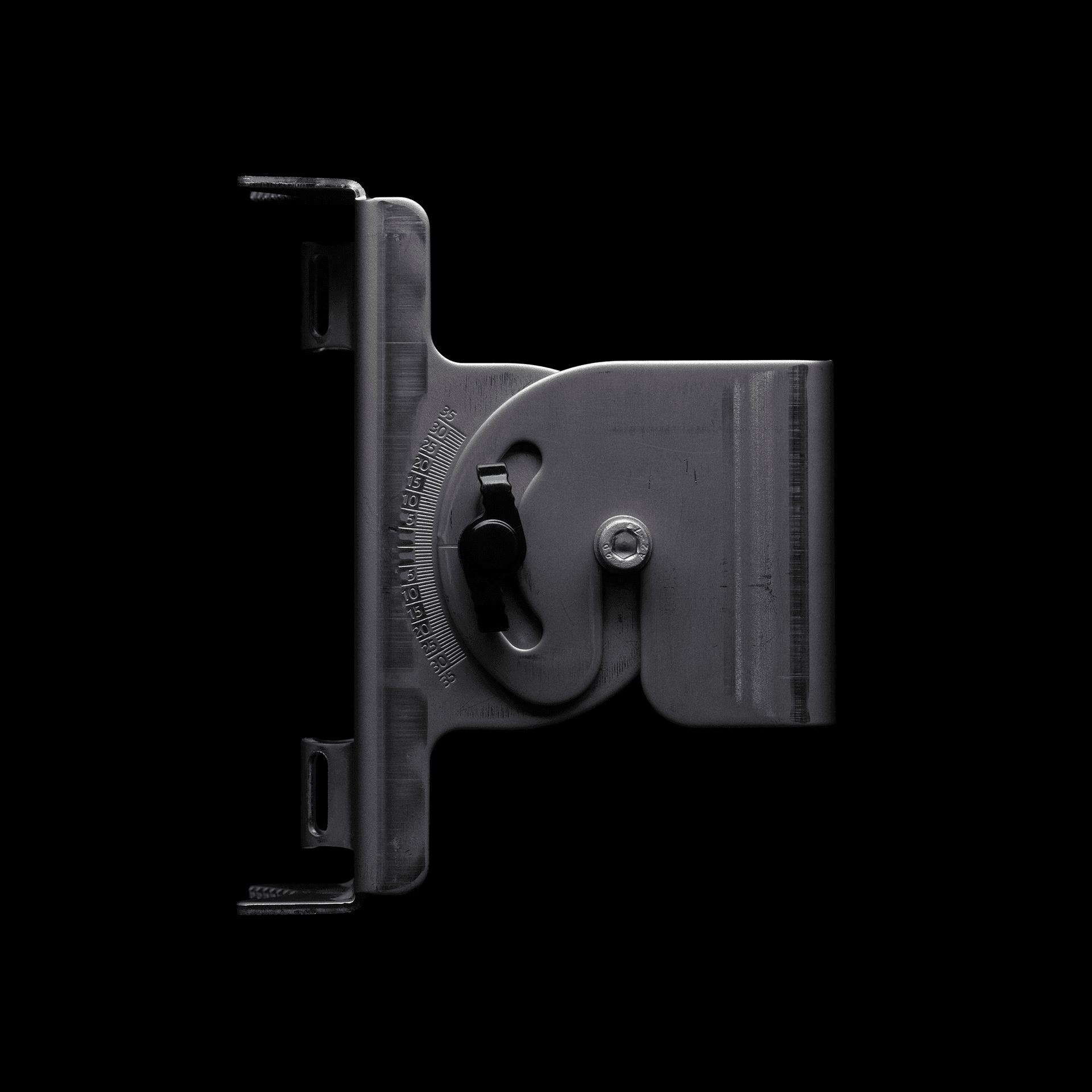

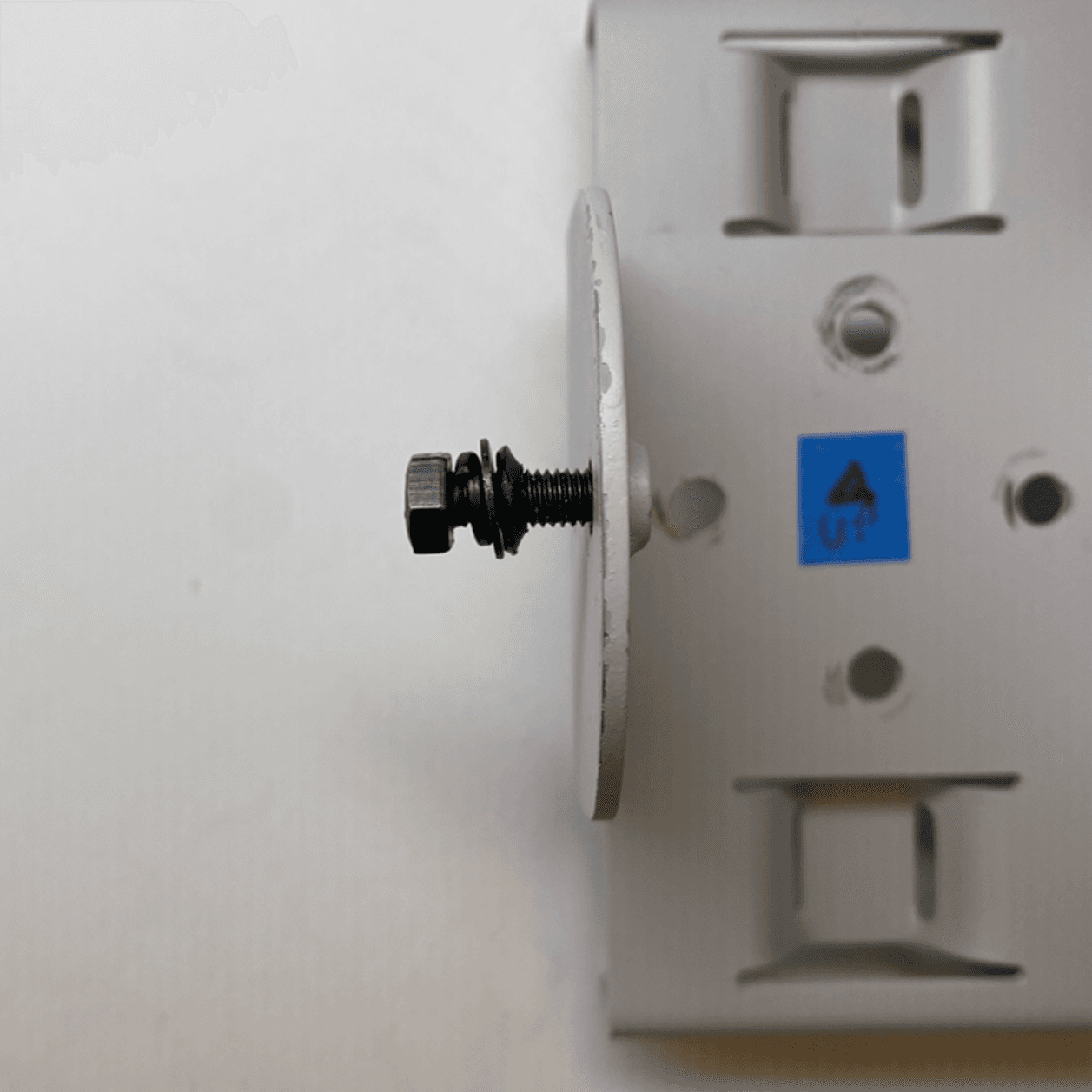

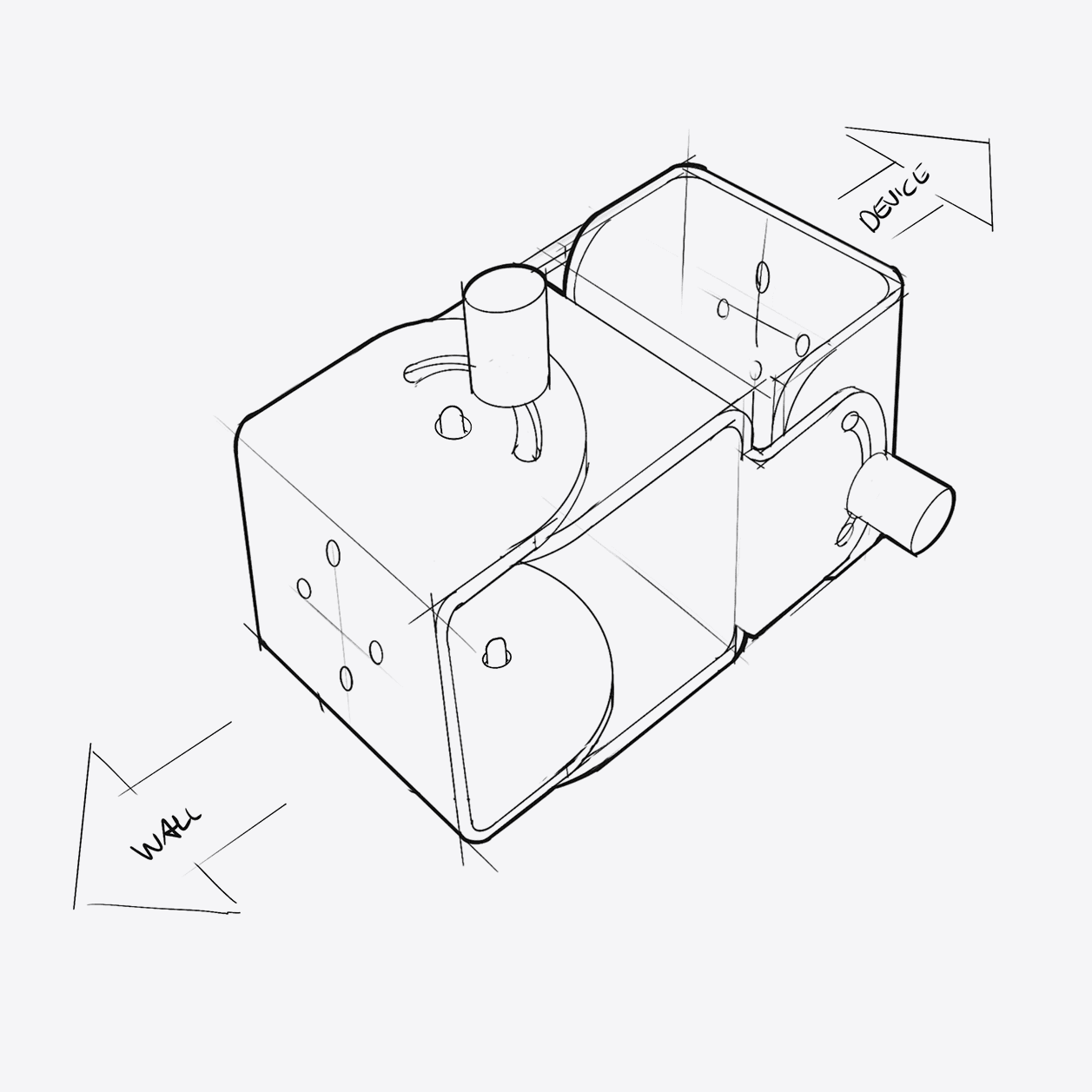

refined. The introduction of a two-part
sheet metal bracket allowing the device
to be hooked before fastening,
reduced unsupported handling
significantly making the process safer.

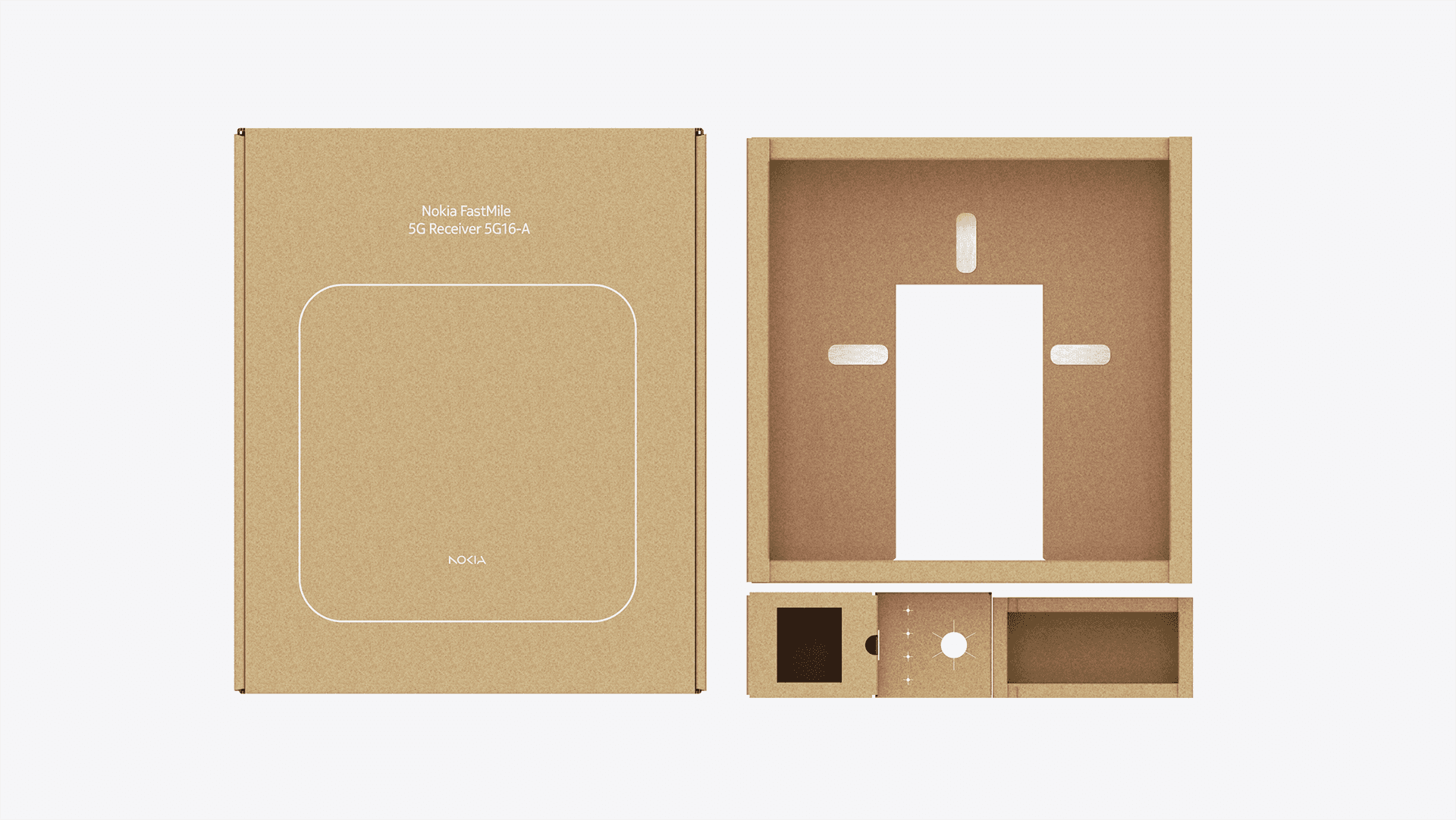

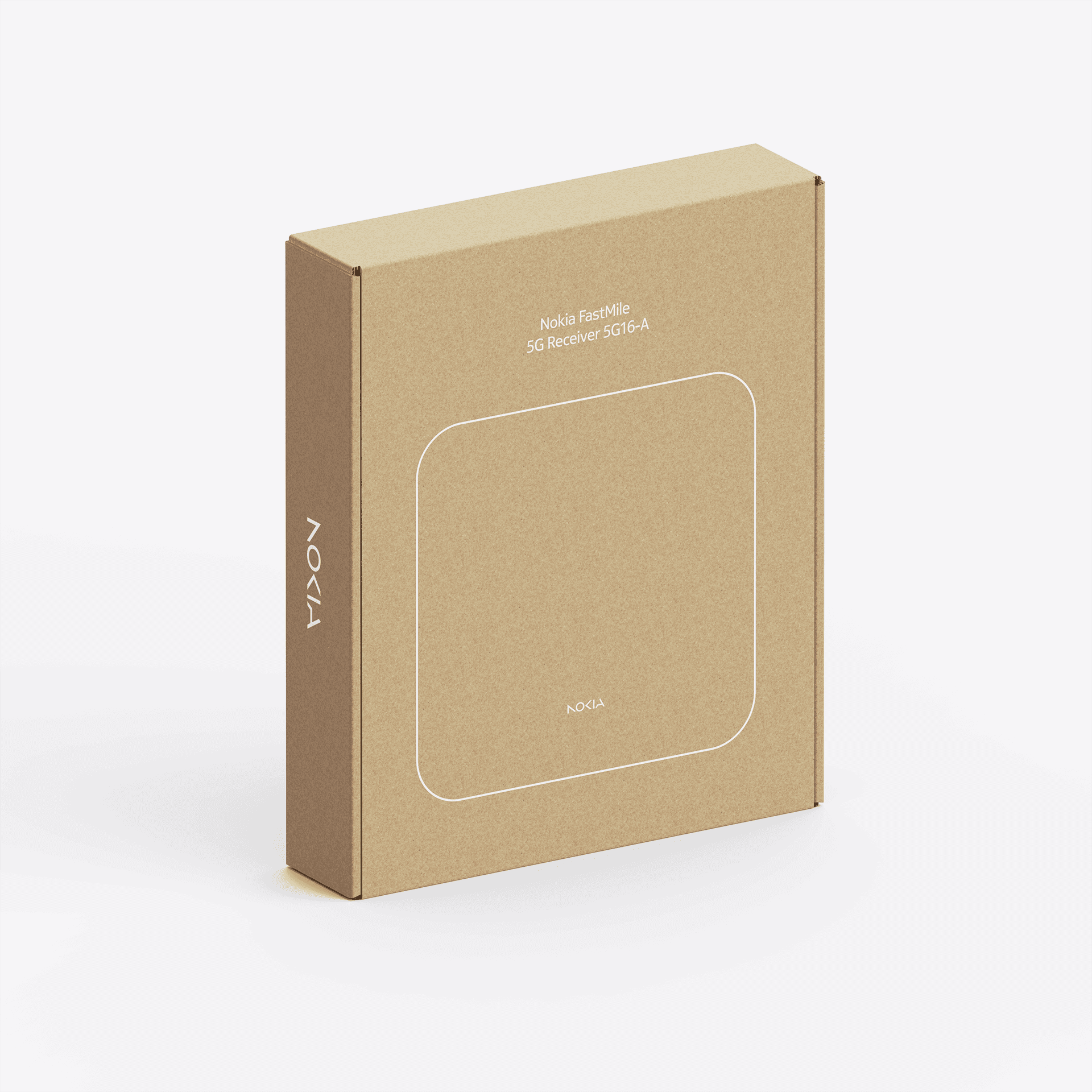

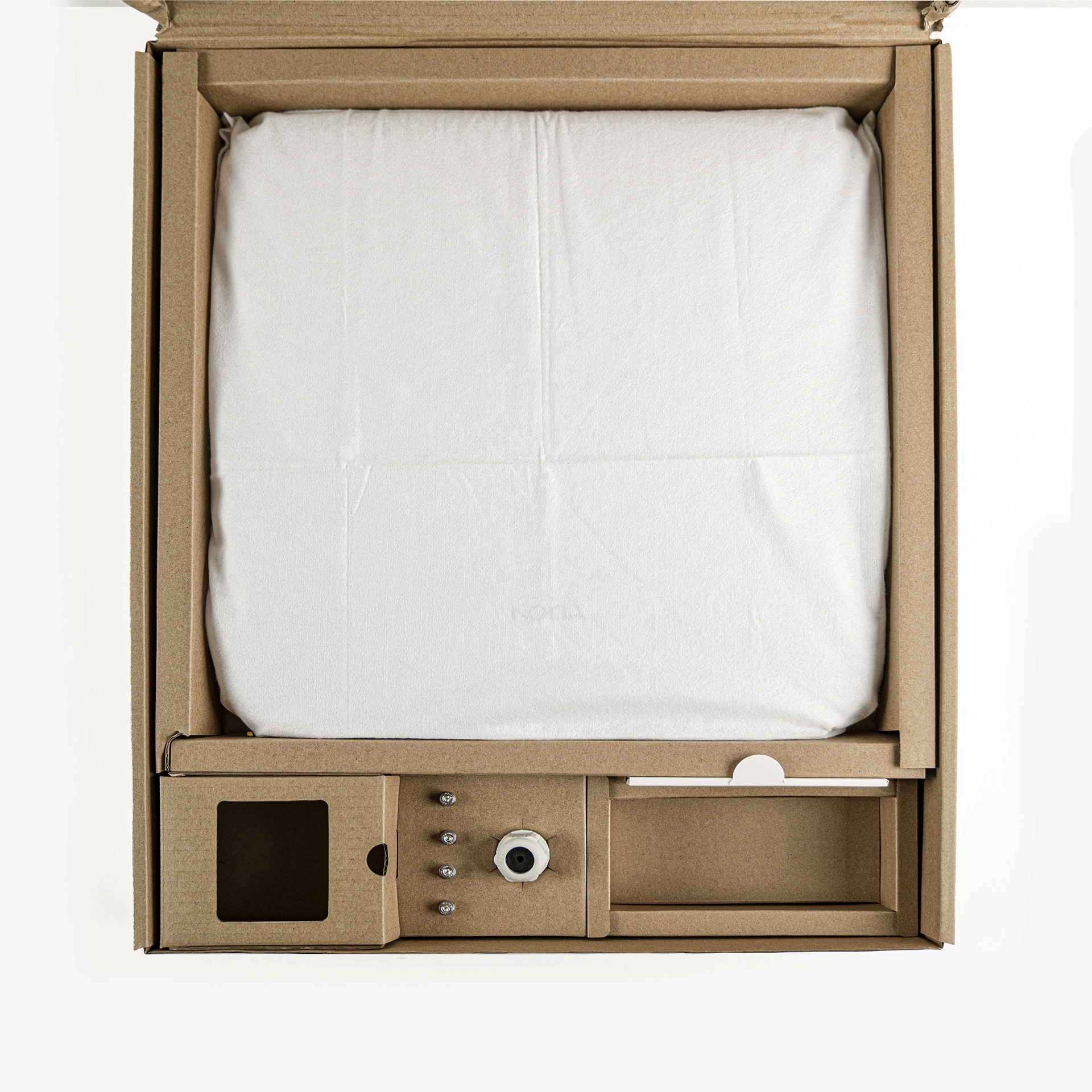

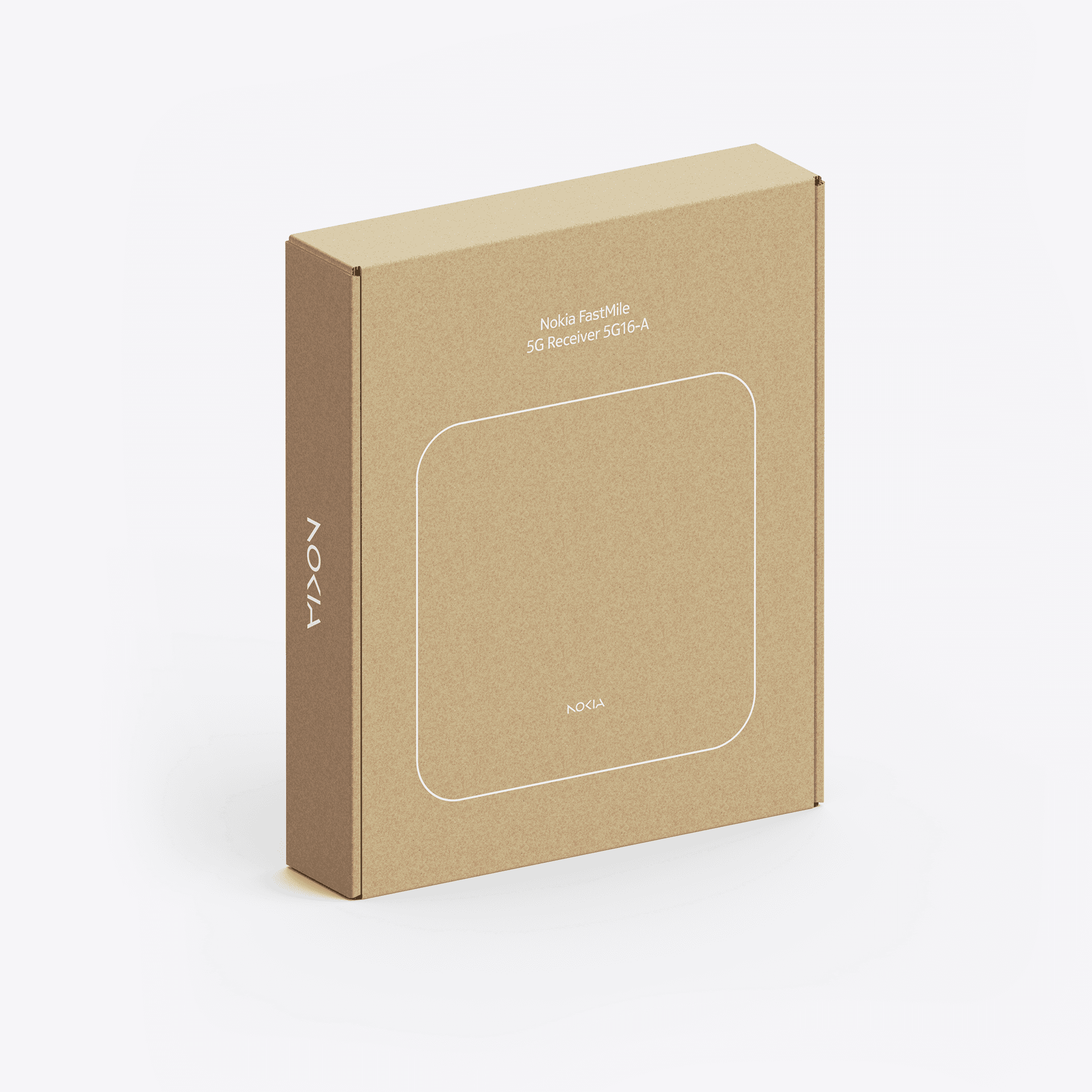

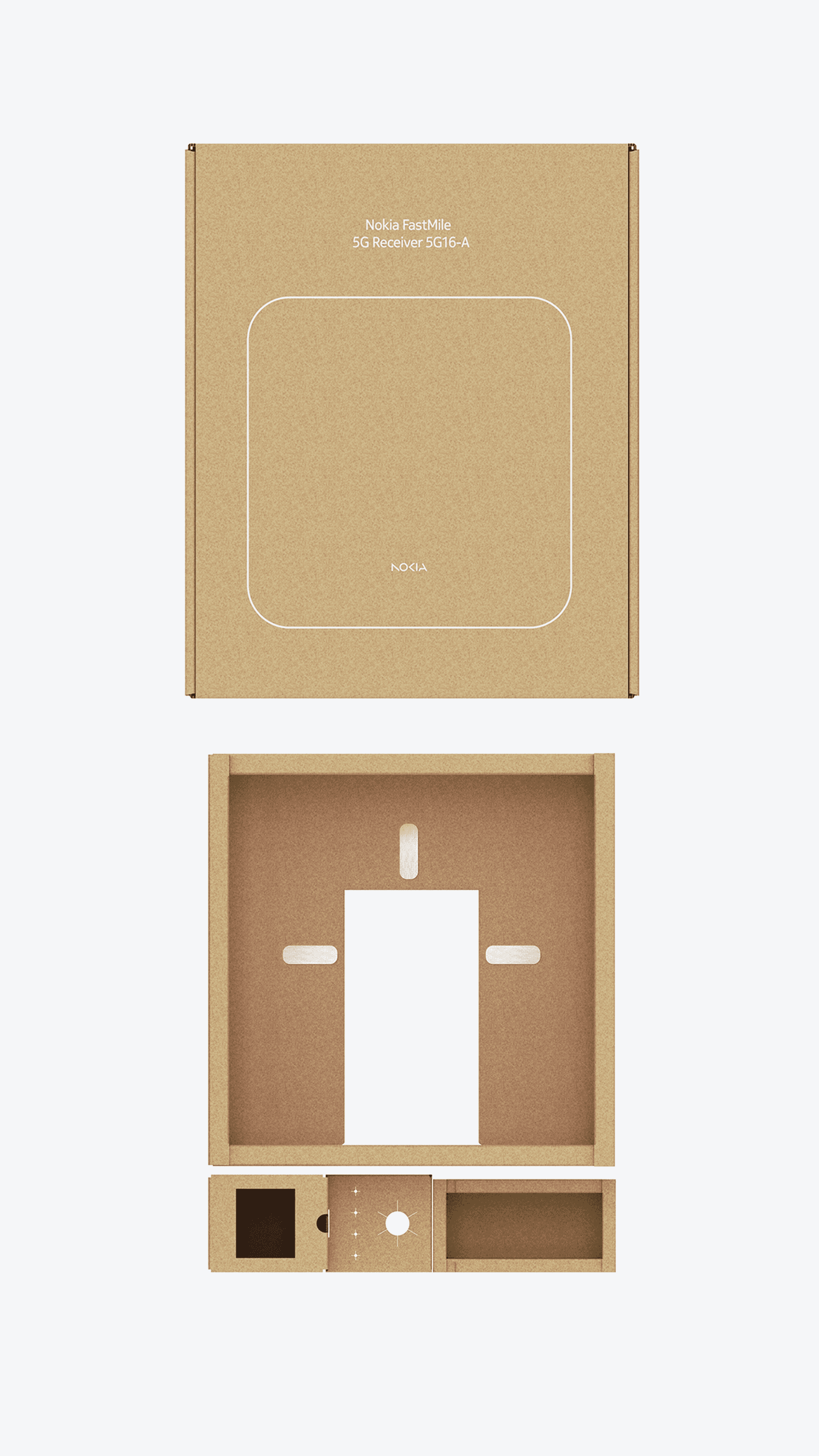

Sustainable Product Protection
Eliminating plastic required rethinking
both product protection and
accessory integration. Non-woven
wood fiber pads replace traditional
plastic bags, protecting the matte
enclosure surface during transport
while keeping the packaging fully
recyclable. The soft fiber material
cushions the device and prevents
abrasion while remaining lightweight
and easy to separate during recycling.

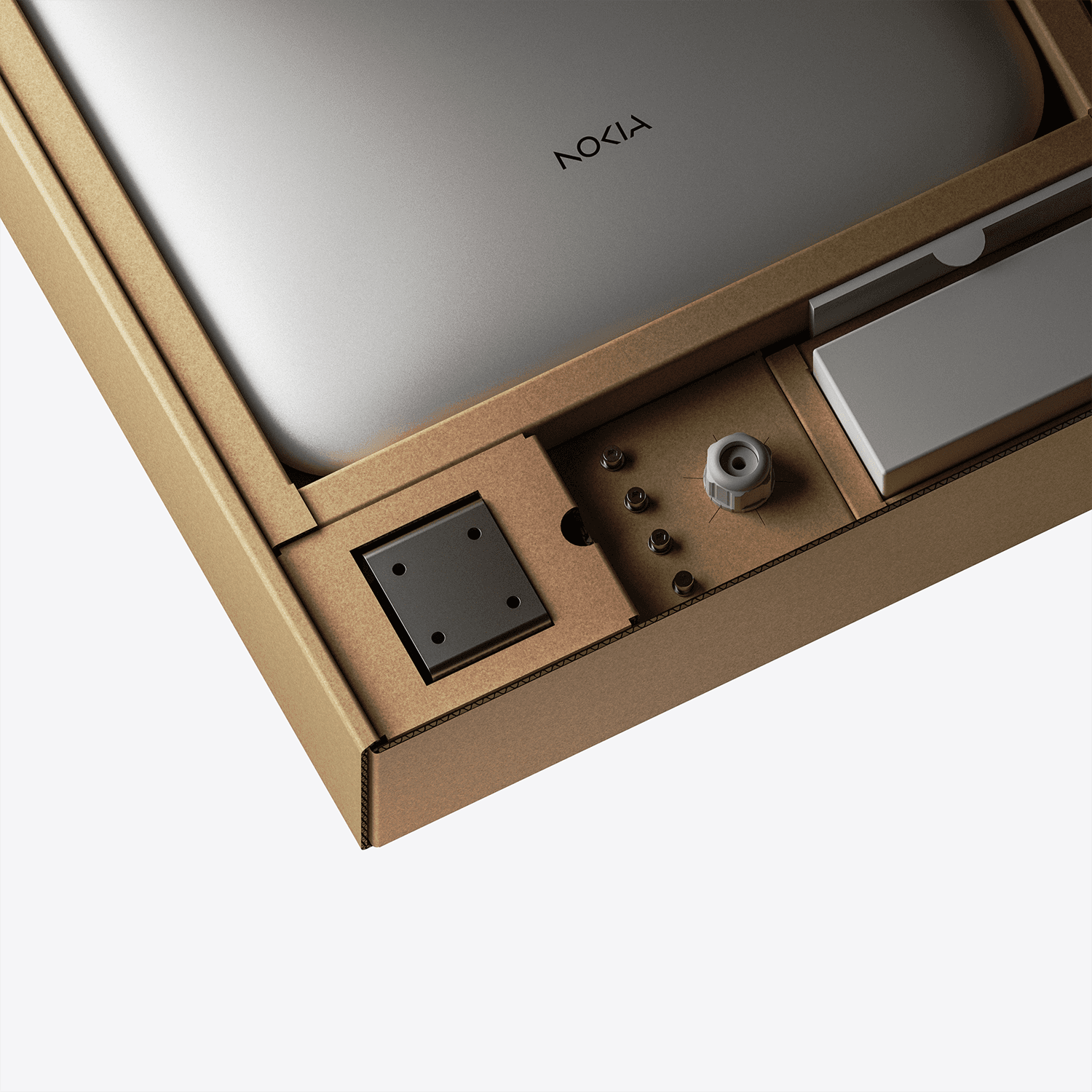

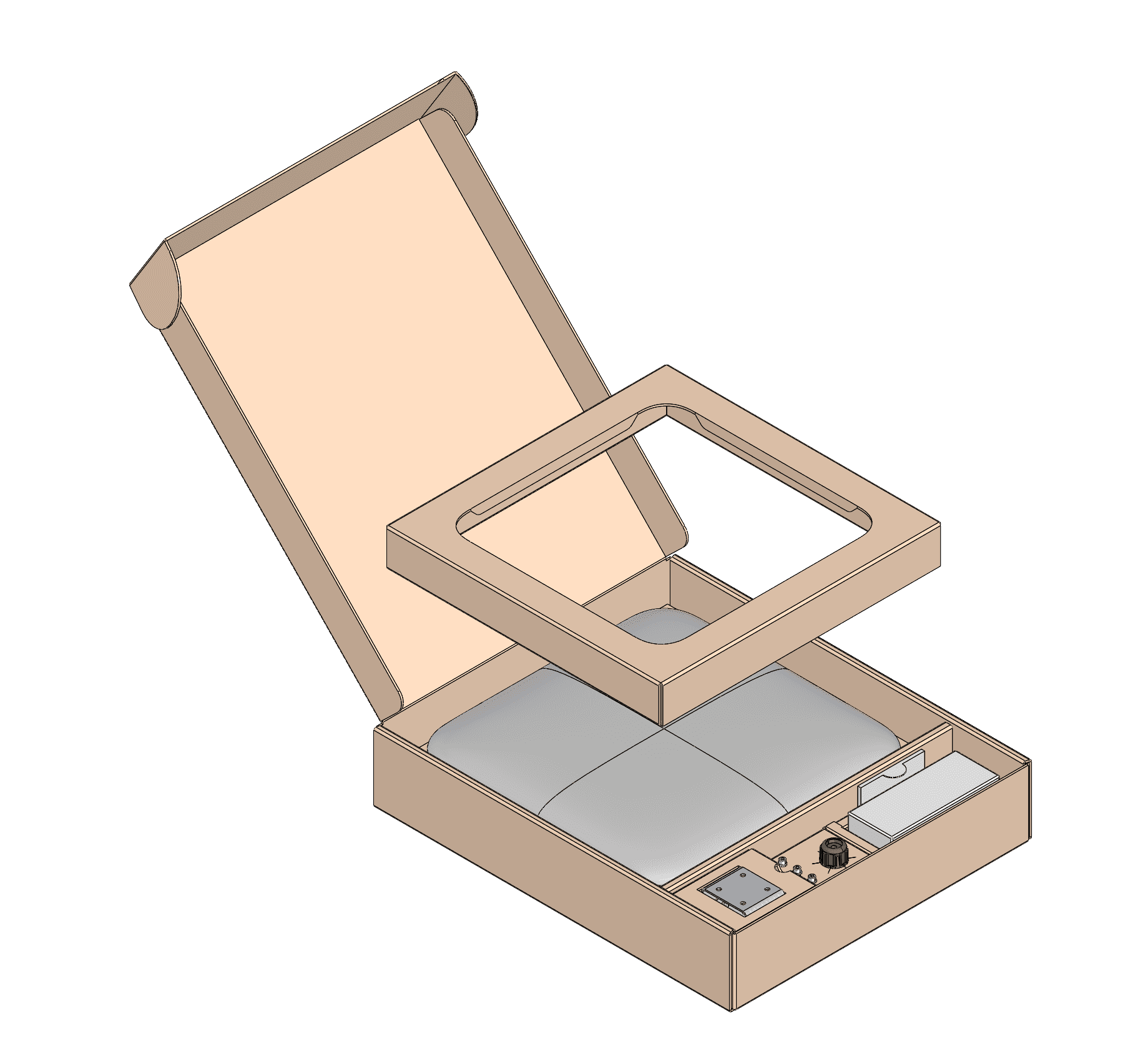

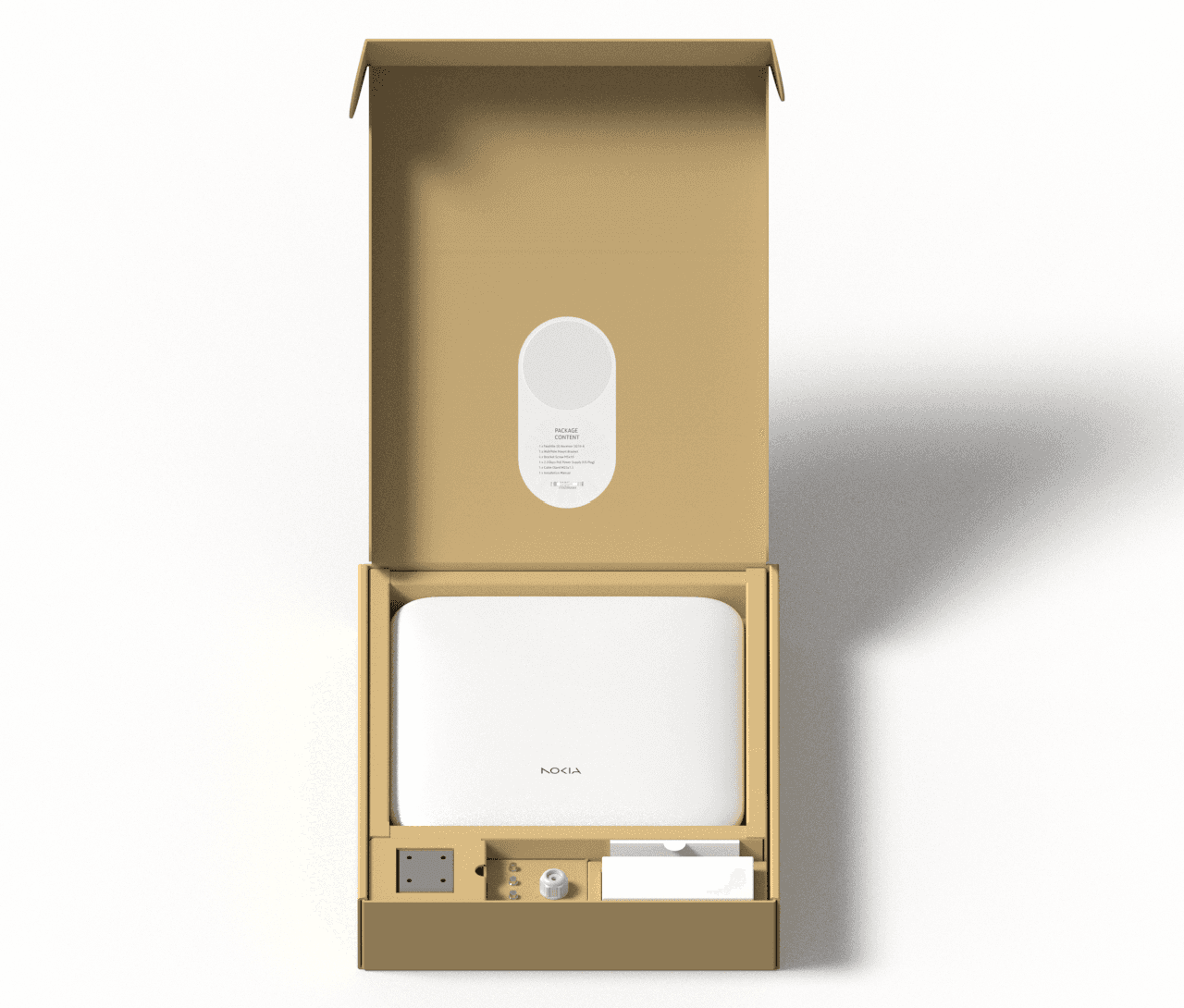

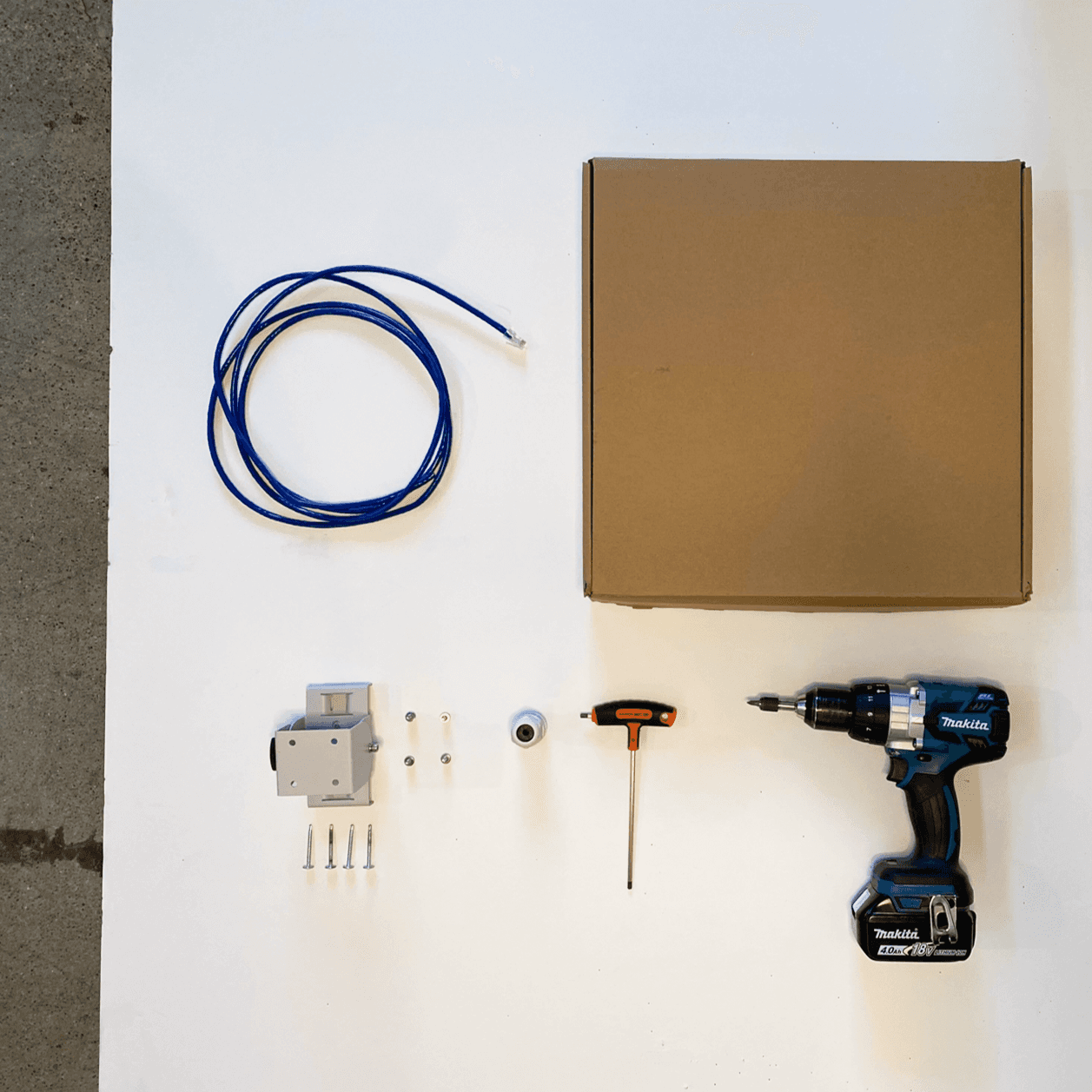

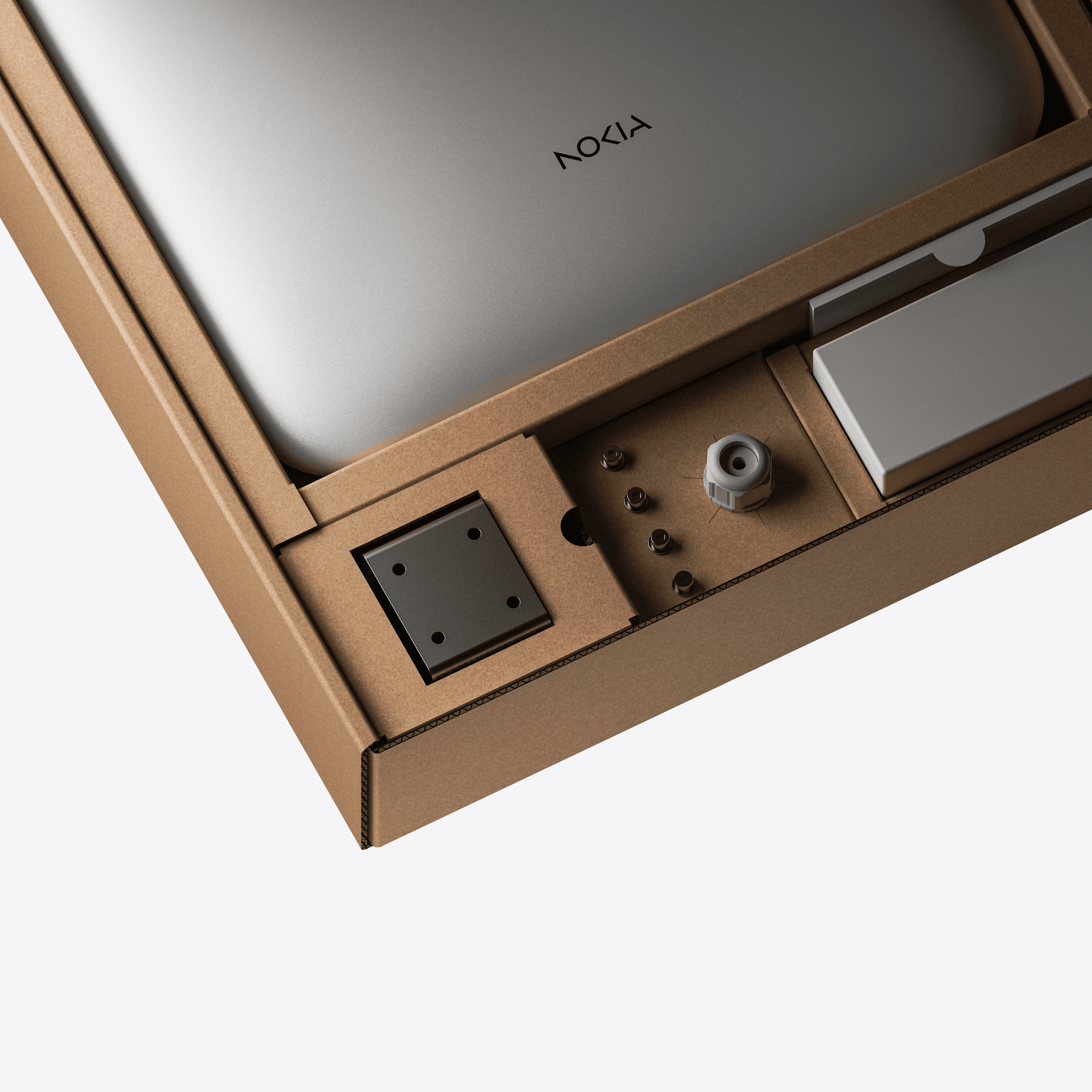

Integrated Accessory Organization
Integrated die-cut retention slits
secure accessories within the
cardboard structure, eliminating
secondary plastic while keeping
components visible and organized.

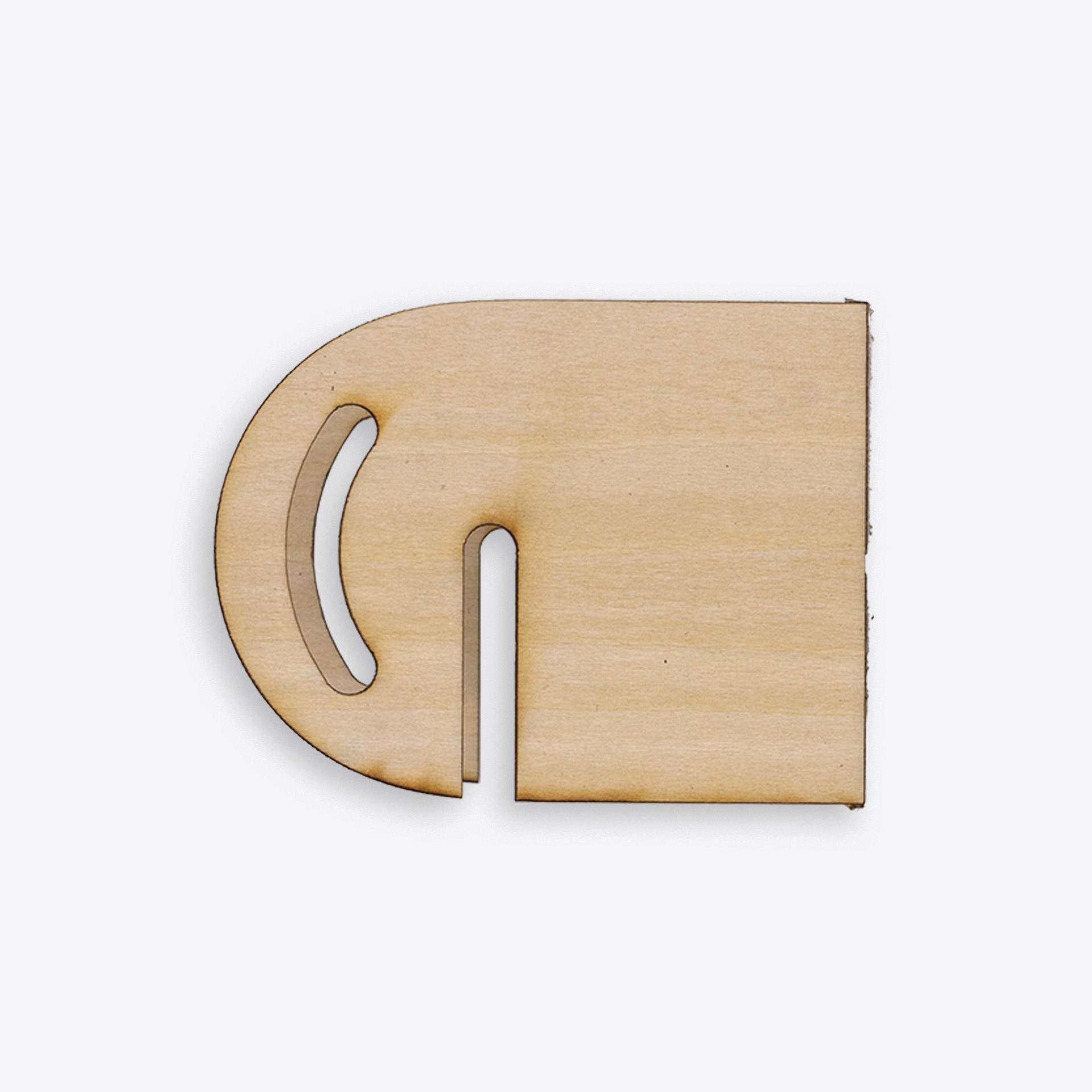

The screws are held in a removable
cardboard insert that can be taken
directly to the installation site, helping
installers keep small parts organized
during mounting.

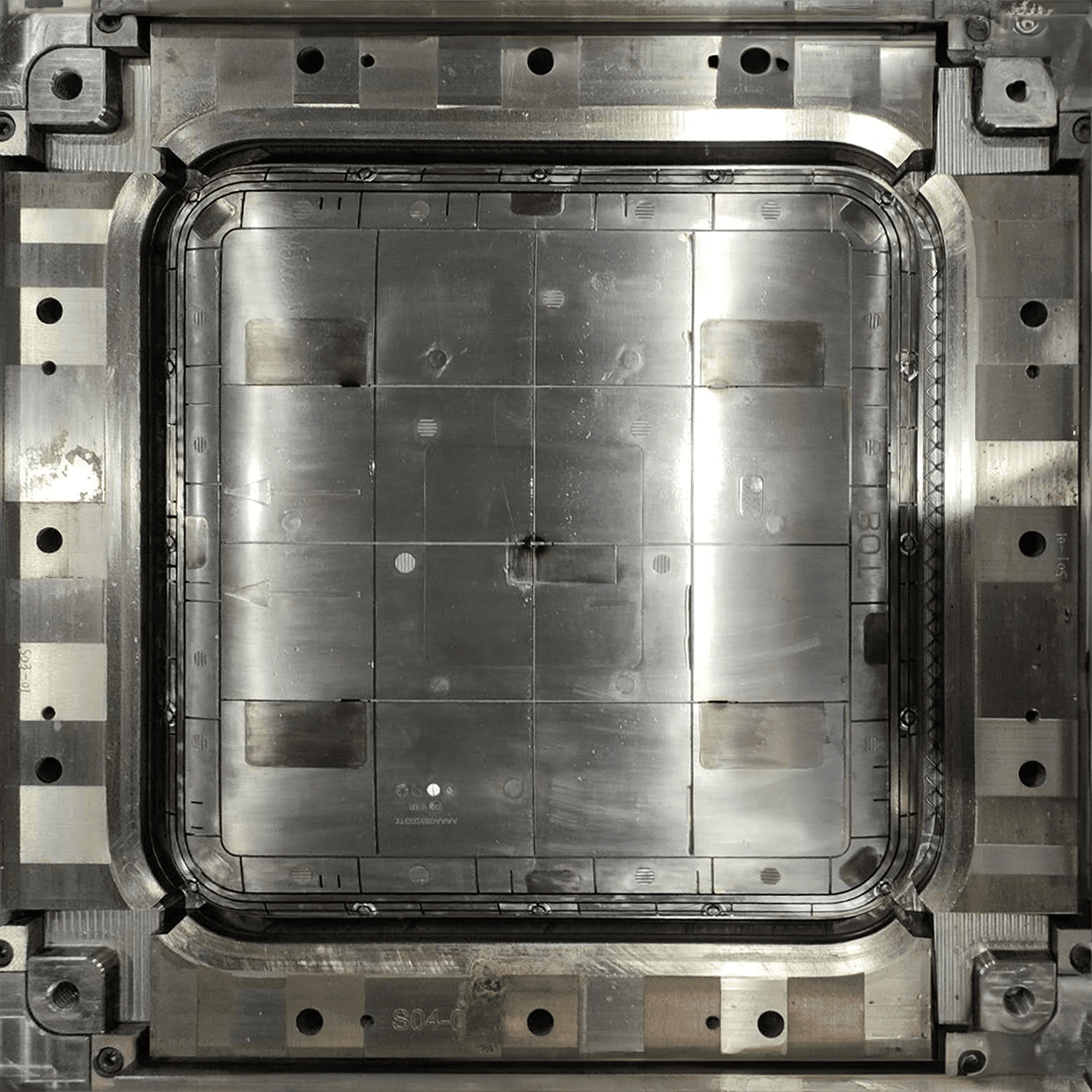

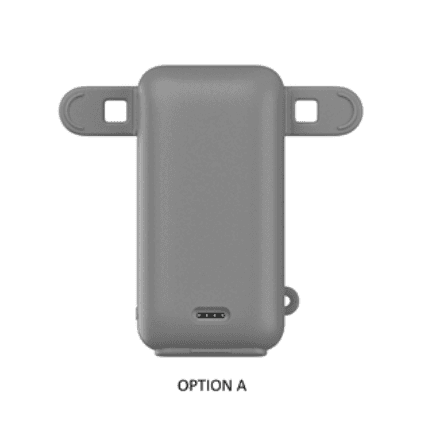

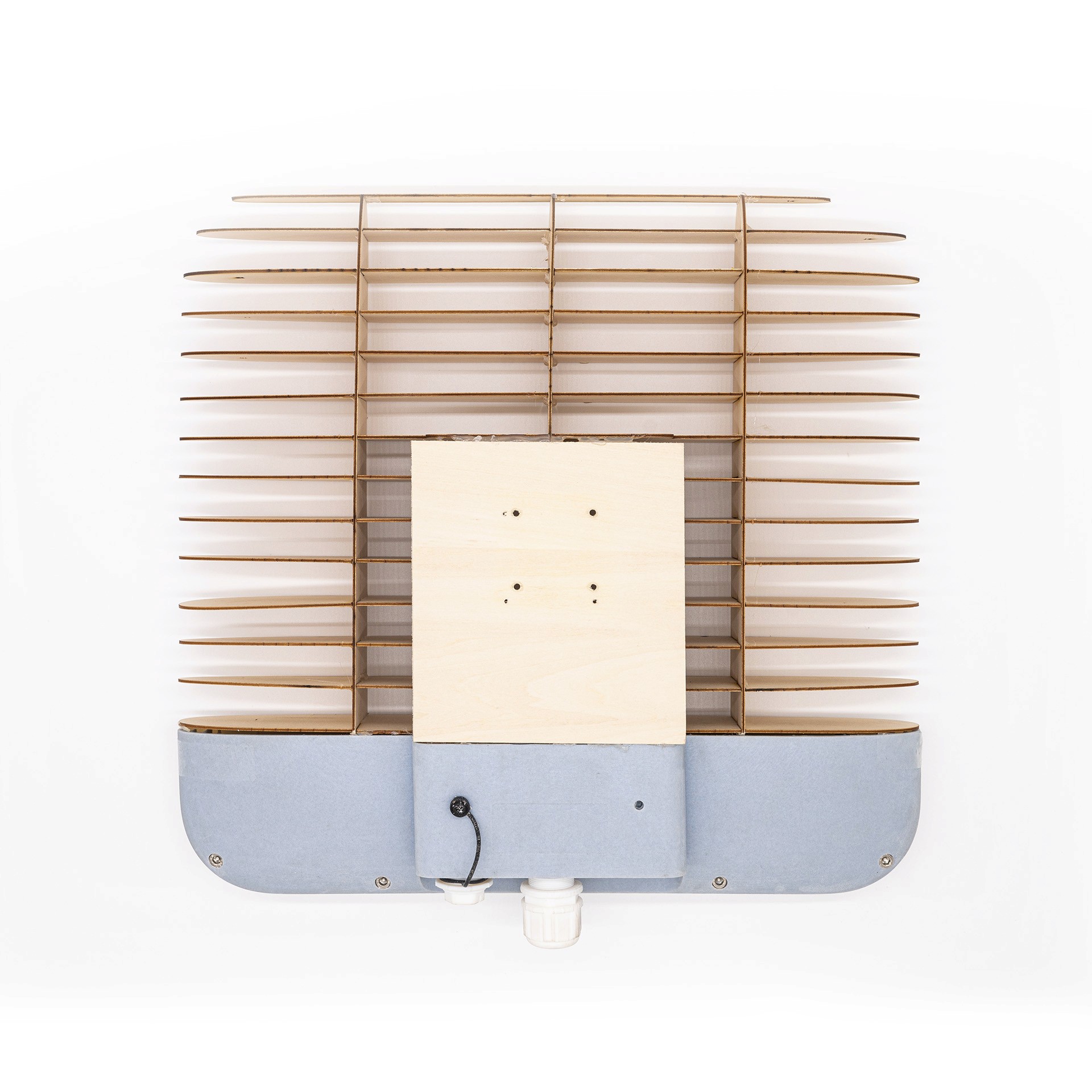

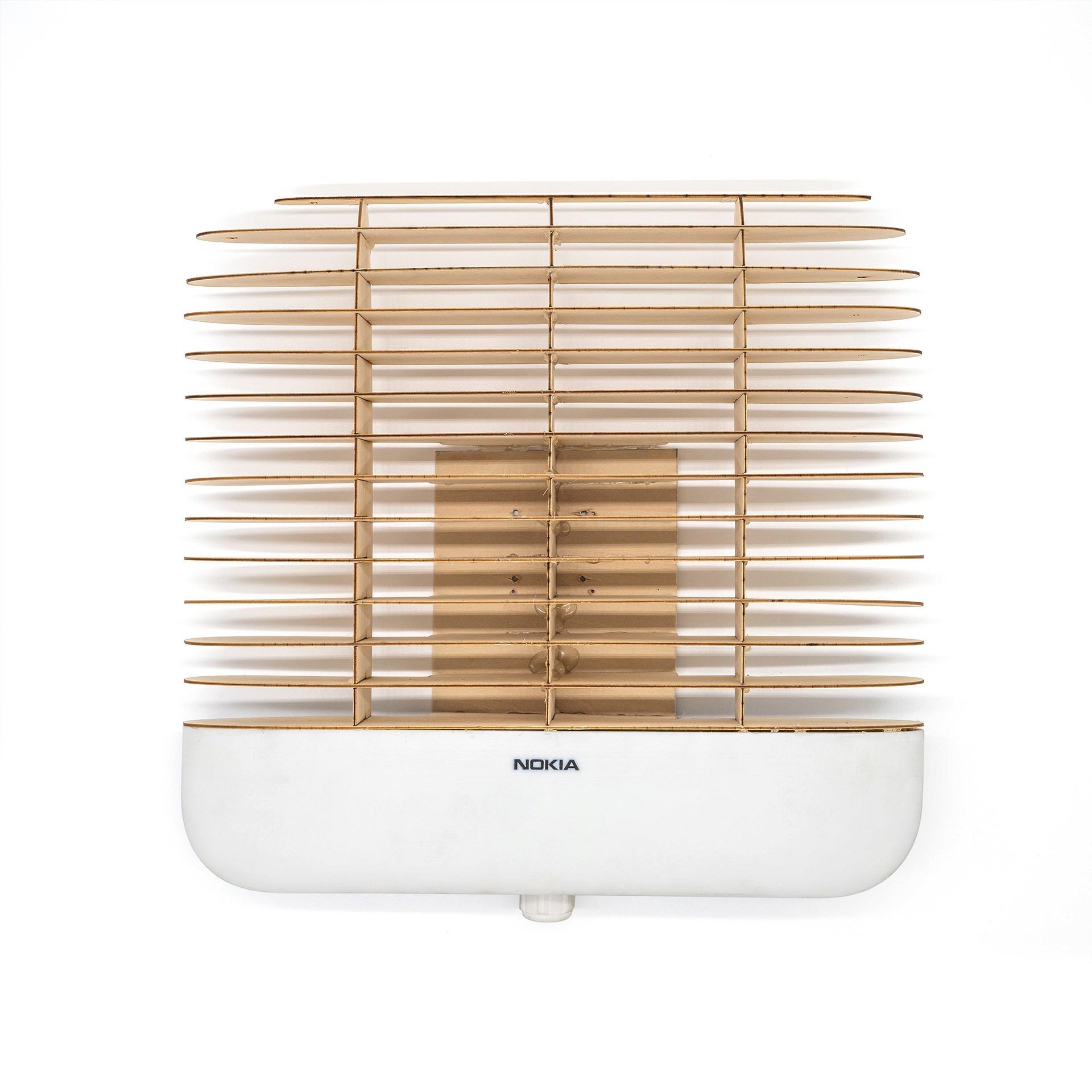

Process
